2EDL05I06BF

600V Half Bridge Gate Driver

2EDL05I06BF Features

* Infineon thin-film-SOI-technology

* Fully operational to +600 V

* Floating channel designed for bootstrap operation

* Output source/sink current capability +0.36 A/-0.7 A

* Integrated Ultra-fast, low RDS(ON) Bootstrap Diode

* Tolerant to negative tra

2EDL05I06BF Datasheet (901.18 KB)

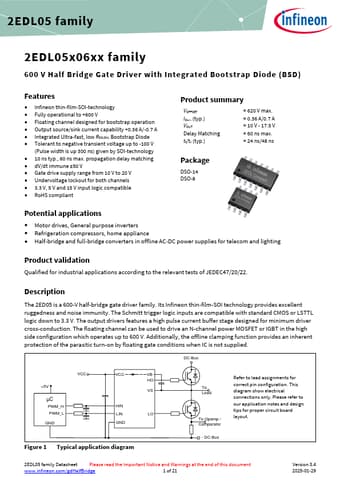

Preview of 2EDL05I06BF PDF
