2EDL05N06PJ, 2EDL05I06PF - 600V Half Bridge Gate Driver

Infineon

📥 Download Datasheet

2EDL05N06PJ Datasheet Preview — This datasheet PDF includes multiple part numbers: 2EDL05N06PJ, 2EDL05I06PF. Please refer to the document for exact specifications by model.

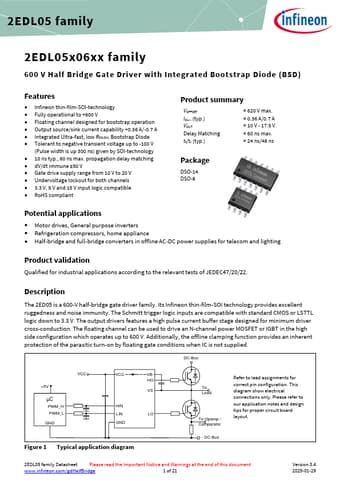

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2EDL05N06PJ, 2EDL05I06PF
Manufacturer	Infineon ↗
File Size	901.18 KB
Description	600V Half Bridge Gate Driver
Datasheet	2EDL05I06PF-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: 2EDL05N06PJ, 2EDL05I06PF. Please refer to the document for exact specifications by model.

2EDL05N06PJ Product details

Description

The 2ED05 is a 600-V half-bridge gate driver family.

Features

Infineon thin-film-SOI-technology.
Fully operational to +600 V.
Floating channel designed for bootstrap operation.
Output source/sink current capability +0.36 A/-0.7 A.
Integrated Ultra-fast, low RDS(ON) Bootstrap Diode.
Tolerant to negative transient voltage up to -100 V (Pulse width is up 300 ns) given by SOI-technology.
10 ns typ. , 60 ns max. propagation delay matching.
dV/dt immune ±50 V.
Gate drive supply rang.
