6EDL7141 Datasheet - Infineon

6EDL7141 - gate driver

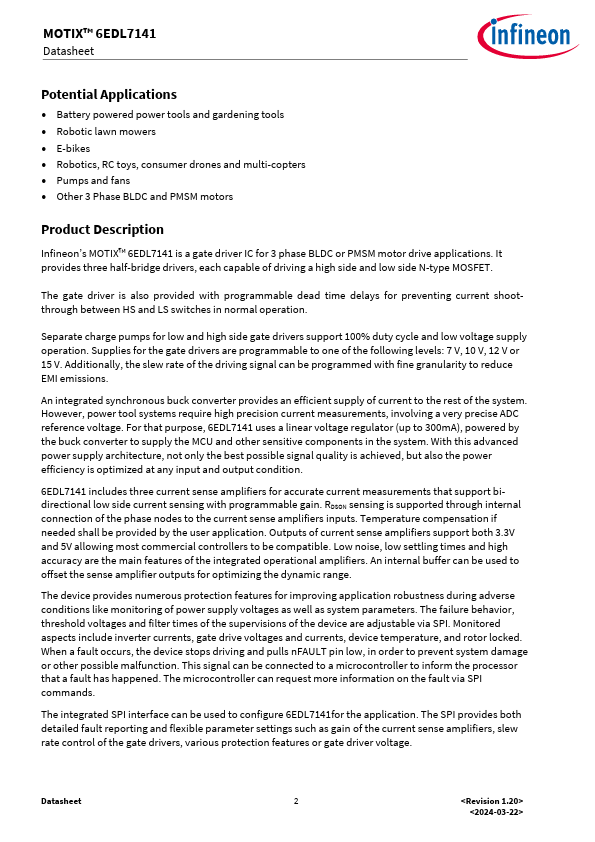

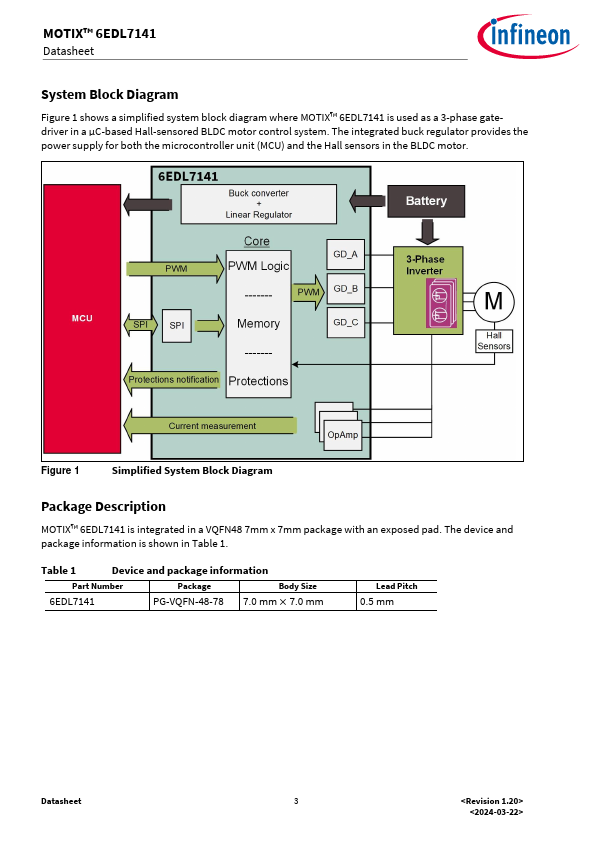

Infineon’s MOTIX™ 6EDL7141 is a gate driver IC for 3 phase BLDC or PMSM motor drive applications.

It provides three half-bridge drivers, each capable of driving a high side and low side N-type MOSFET.

The gate driver is also provided with programmable dead time delays for preventing current shootthr

6EDL7141 Features

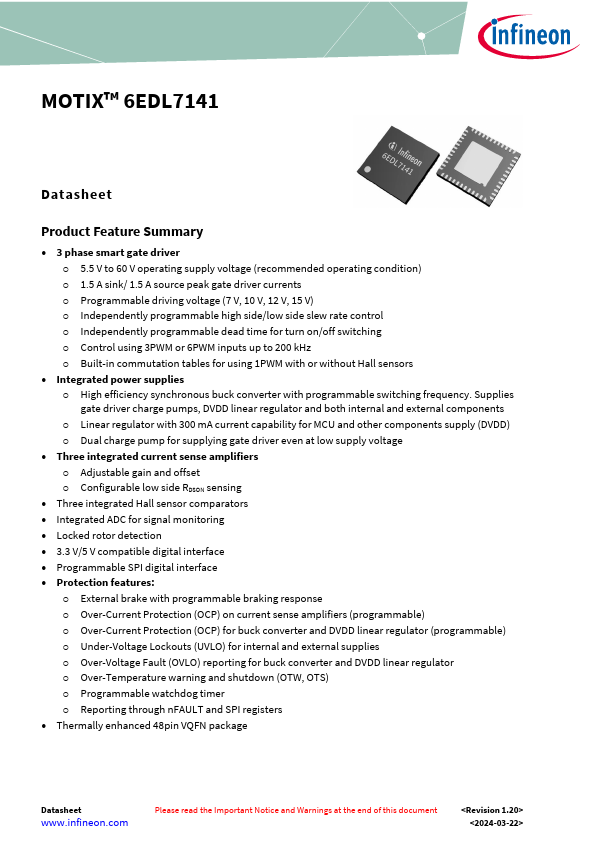

* o External brake with programmable braking response o Over-Current Protection (OCP) on current sense amplifiers (programmable) o Over-Current Protection (OCP) for buck converter and DVDD linear regulator (programmable) o Under-Voltage Lockouts (UVLO) for internal and external supplies o Over-Voltag
