6EDL7151 - three-phase smart gate driver

Infineon

Datasheet Details

Part number	6EDL7151
Manufacturer	Infineon ↗
File Size	2.29 MB
Description	three-phase smart gate driver
Datasheet	6EDL7151-Infineon.pdf

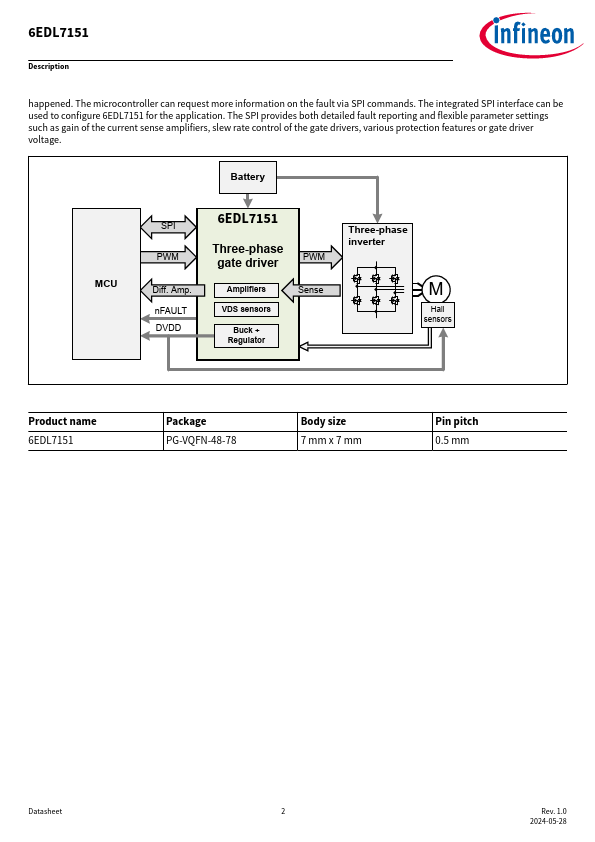

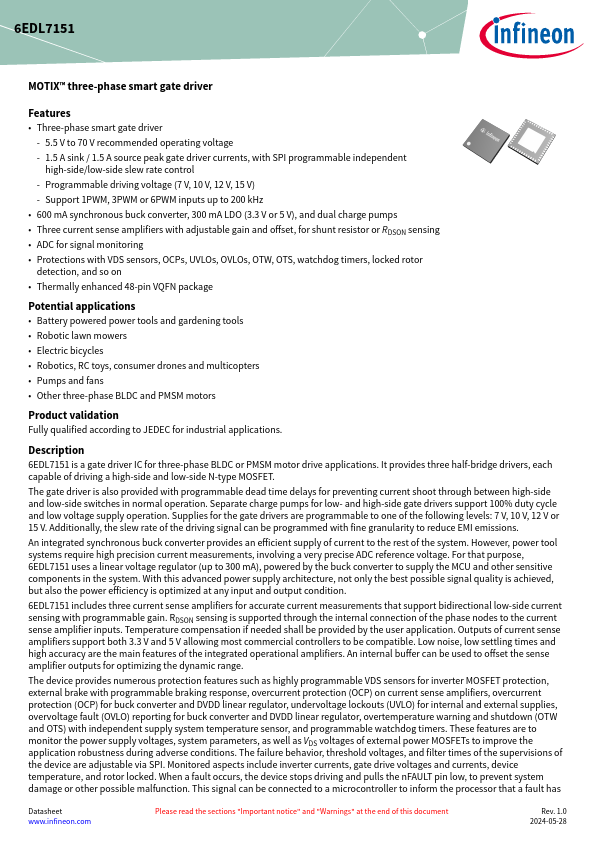

6EDL7151 is a gate driver IC for three-phase BLDC or PMSM motor drive applications.

Three-phase smart gate driver - 5.5 V to 70 V recommended operating voltage - 1.5 A sink / 1.5 A source peak gate driver currents, with SPI programmable independent high-side/low-side slew rate control - Programmable driving voltage (7 V, 10 V, 12 V, 15 V) - Support 1PWM, 3PWM or 6PWM inputs up to 200 kHz.
600 mA synchronous buck converter, 300 mA LDO (3.3 V or 5 V), and dual charge pumps.
Three current sense amplifiers with adjustable gain and offset, for shunt resis.
