AIMCQ120R060M1T Datasheet - Infineon

1200V Automotive MOSFET

AIMCQ120R060M1T Features

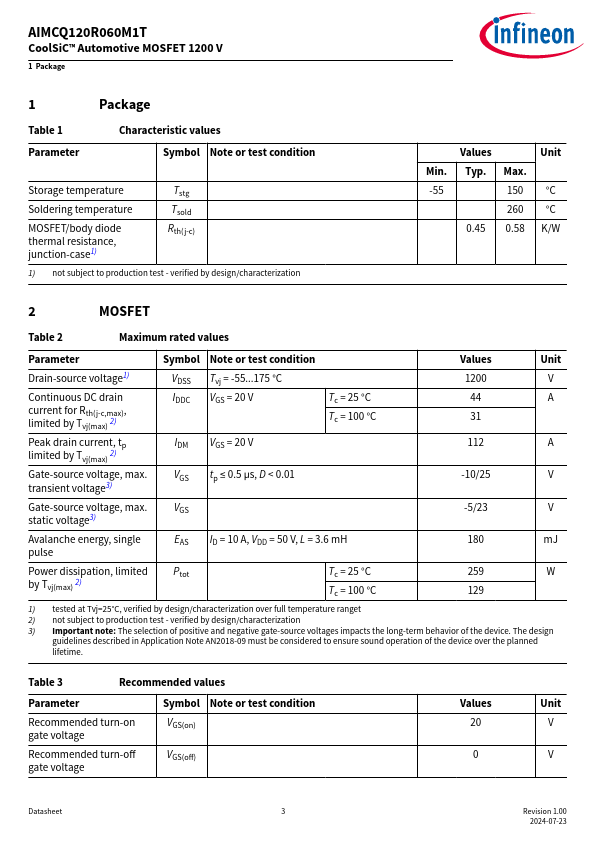

* VDSS = 1200 V at Tvj = -55175°C

* IDDC = 44 A at TC = 25°C

* RDS(on) = 60 mΩ at VGS = 20 V, Tvj = 25°C

* New performance-optimized chip technology (Gen1p) with improved RDSon

* A

* Best in class switching energy for lower switching losses and reduced cool

AIMCQ120R060M1T General Description

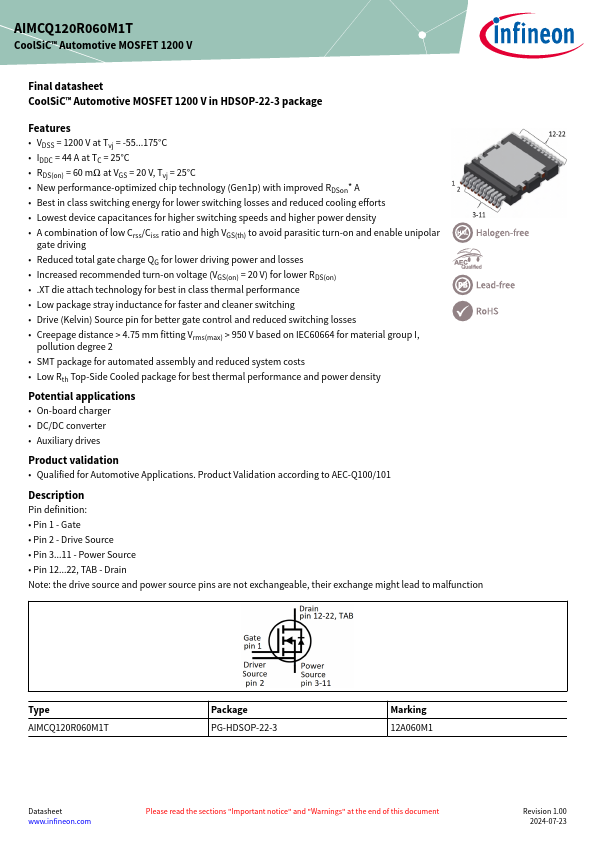

Pin definition: * Pin 1 - Gate * Pin 2 - Drive Source * Pin 311 - Power Source * Pin 1222, TAB - Drain Note: the drive source and power source pins are not exchangeable, their exchange might lead to malfunction Type AIMCQ120R060M1T Package PG-HDSOP-22-3 Marking 12A.
