AIMCQ120R080M1T 1200V Automotive MOSFET

AIMCQ120R080M1T Description

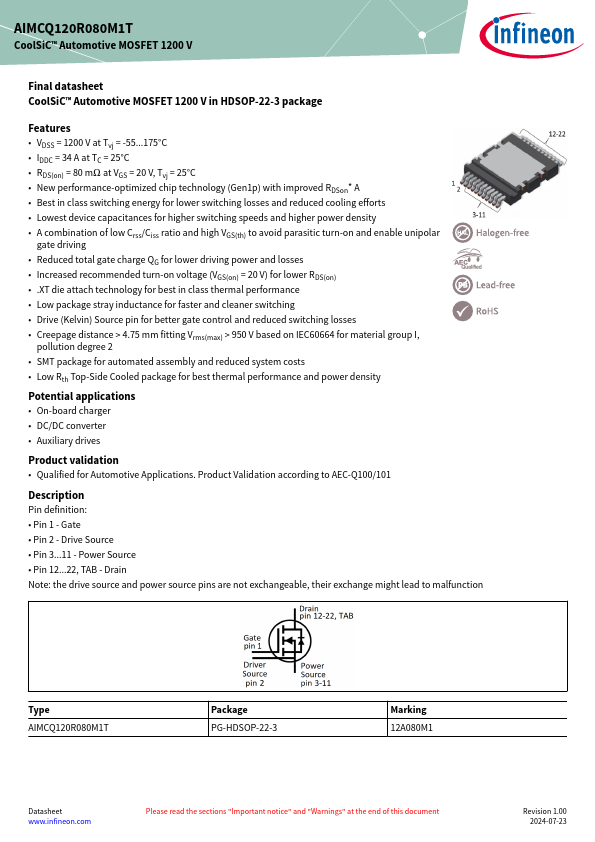

AIMCQ120R080M1T CoolSiC™ Automotive MOSFET 1200 V Final datasheet CoolSiC™ Automotive MOSFET 1200 V in HDSOP-22-3 package .
Pin definition:. Pin 1 - Gate. Pin 2 - Drive Source. Pin 311 - Power Source. Pin 1222, TAB - Drain Note: the drive.

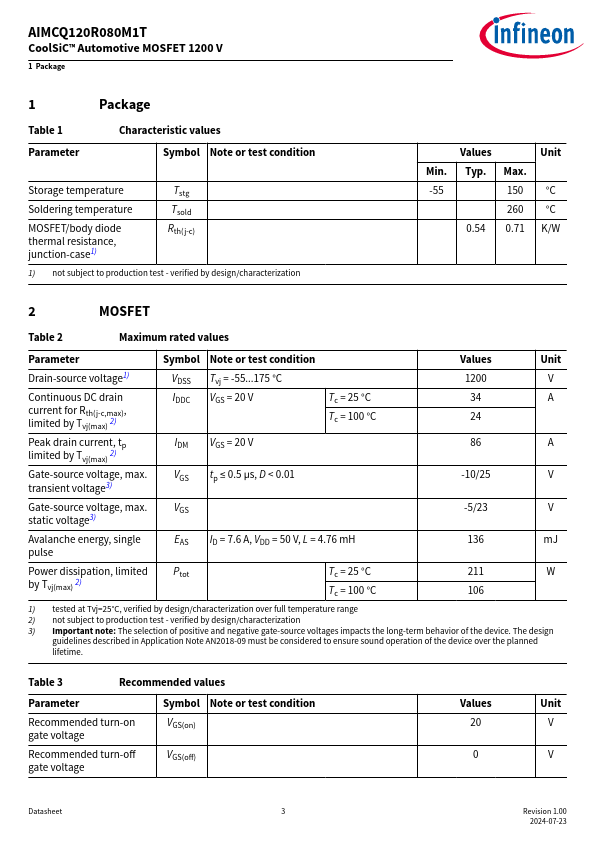

AIMCQ120R080M1T Features

* VDSS = 1200 V at Tvj = -55175°C
* IDDC = 34 A at TC = 25°C
* RDS(on) = 80 mΩ at VGS = 20 V, Tvj = 25°C
* New performance-optimized chip technology (Gen1p) with improved RDSon
* A
* Best in class switching energy for lower switching losses and reduced cool

AIMCQ120R080M1T Applications

* On-board charger
* DC/DC converter
* Auxiliary drives Product validation
