AIMCQ120R160M1T - 1200V Automotive MOSFET

Infineon

📥 Download Datasheet

AIMCQ120R160M1T Datasheet Preview — Preview of AIMCQ120R160M1T PDF

Datasheet Details

Part number	AIMCQ120R160M1T
Manufacturer	Infineon
File Size	1.55 MB
Description	1200V Automotive MOSFET
Datasheet	AIMCQ120R160M1T-Infineon.pdf

AIMCQ120R160M1T Product details

Description

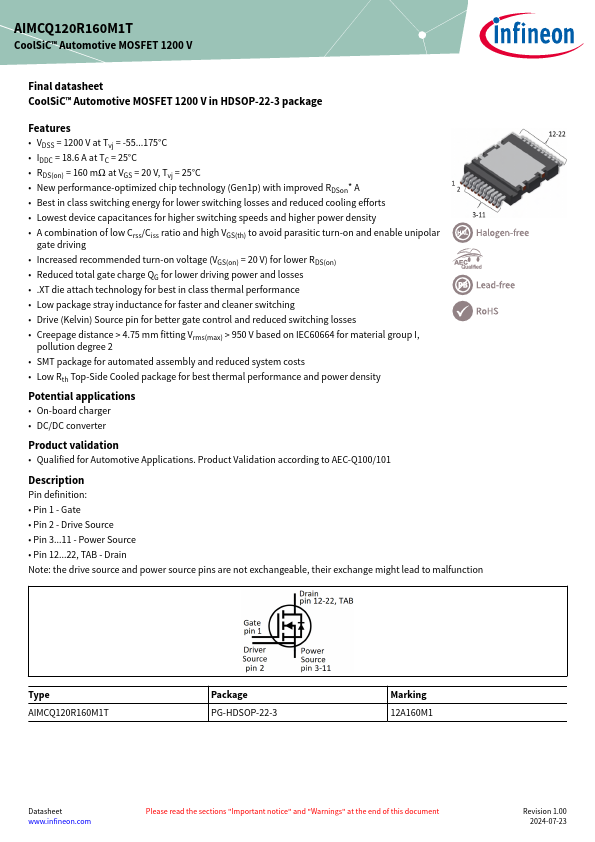

Pin definition: Pin 1 - Gate Pin 2 - Drive Source Pin 311 - Power Source Pin 1222, TAB - Drain Note: the drive source and power source pins are not exchangeable, their exchange might lead to malfunction Type AIMCQ120R160M1T Package PG-HDSOP-22-3 Marking 12A160M1 Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2024-07-23 AIMCQ120R160M1T CoolSiC™ Automotive MOSFET 1200 V T

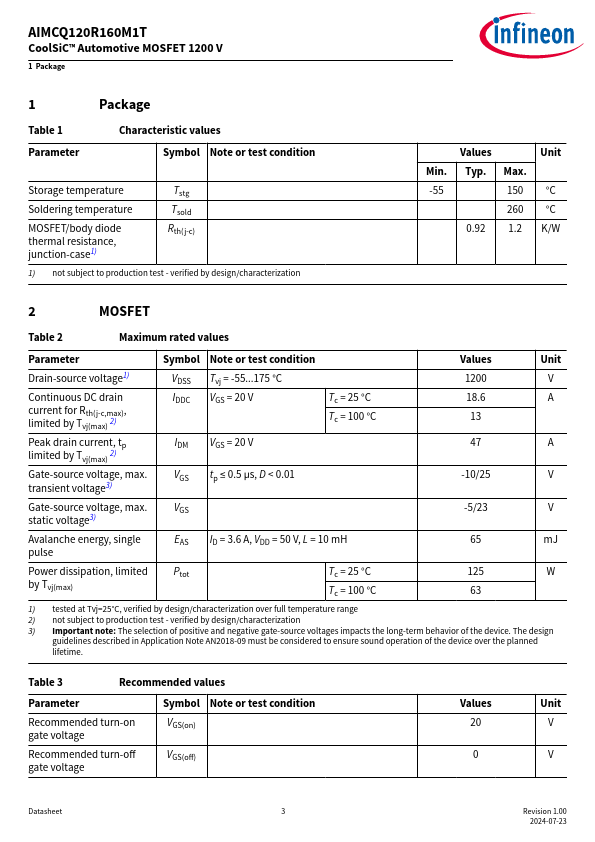

Features

VDSS = 1200 V at Tvj = -55175°C.
IDDC = 18.6 A at TC = 25°C.
RDS(on) = 160 mΩ at VGS = 20 V, Tvj = 25°C.
New performance-optimized chip technology (Gen1p) with improved RDSon.
A.
Best in class switching energy for lower switching losses and reduced cooling efforts.
Lowest device capacitances for higher switching speeds and higher power density.
A combination of low Crss/Ciss ratio and high VGS(th) to avoid parasitic turn-on and.
