BSC060P03NS3E, BSC060P03NS3EG Datasheet - Infineon

BSC060P03NS3E - Power-MOSFET

BSC060P03NS3E Features

* single P-Channel in SuperSO8

* Qualified according JEDEC1) for target applications

* 150 °C operating temperature

* 100% Avalanche rated

* V GS=25 V, specially suited for notebook applications

* ESD protected

* Pb-free; RoHS compliant

BSC060P03NS3EG-Infineon.pdf

This datasheet PDF includes multiple part numbers: BSC060P03NS3E, BSC060P03NS3EG. Please refer to the document for exact specifications by model.

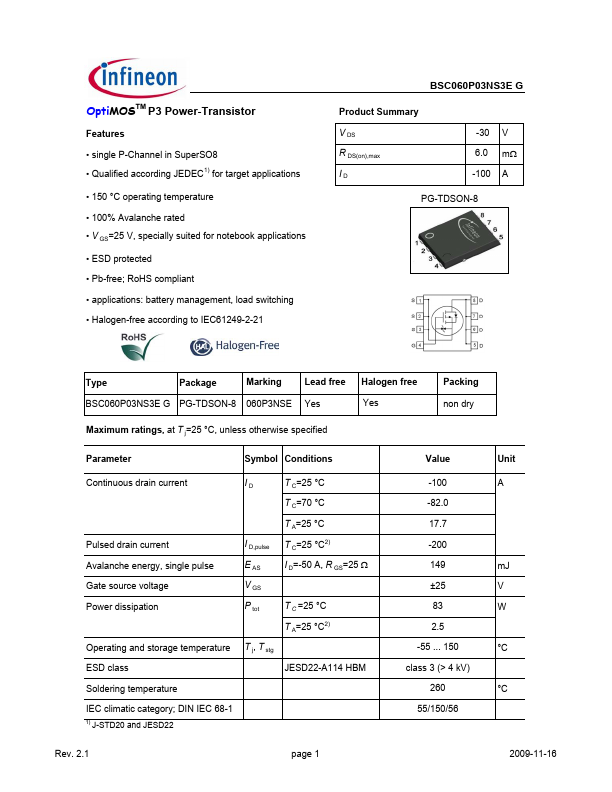

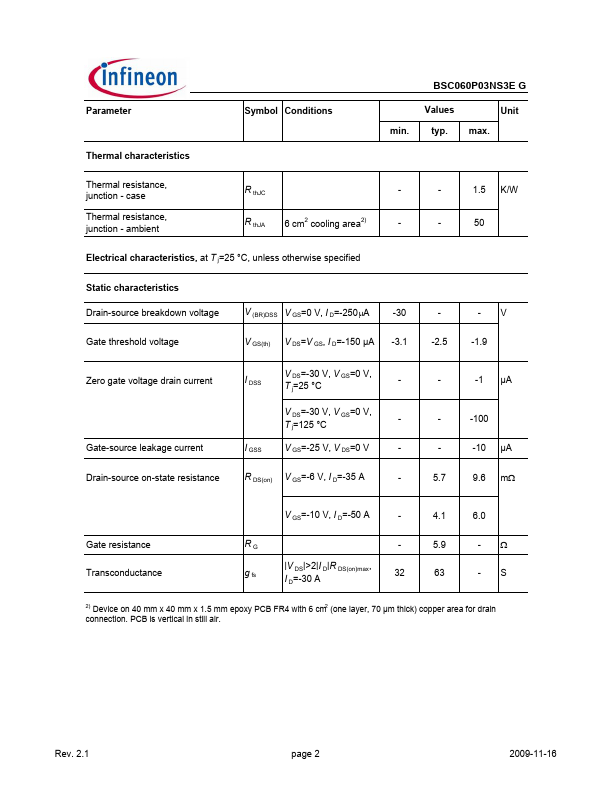

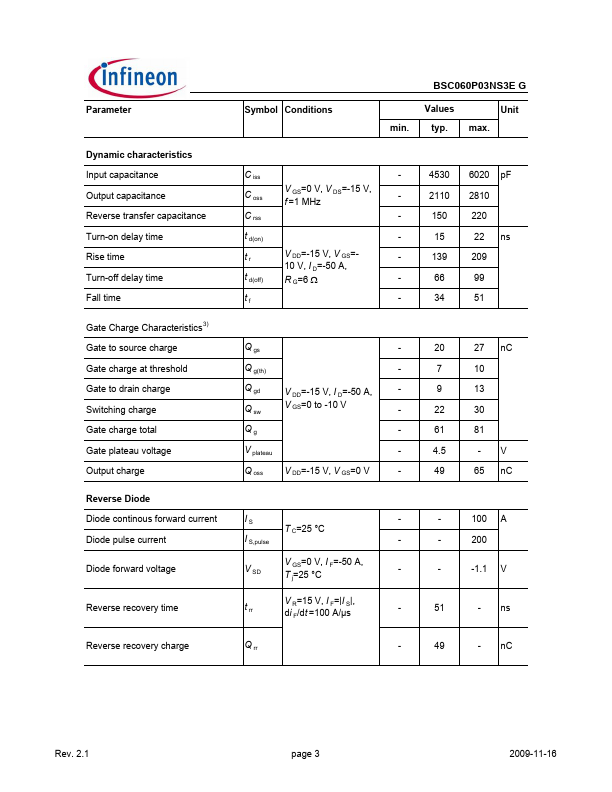

BSC060P03NS3E Datasheet Preview Page 2 BSC060P03NS3E Datasheet Preview Page 3

Datasheet Details

Part number:

BSC060P03NS3E, BSC060P03NS3EG

Manufacturer:

Infineon ↗

File Size:

281.93 KB

Description:

Power-mosfet.

Note:

This datasheet PDF includes multiple part numbers: BSC060P03NS3E, BSC060P03NS3EG.
Please refer to the document for exact specifications by model.
