BSC065N06LS5 60V MOSFET

Infineon

Description

BSC065N06LS5 MOSFET OptiMOSTM Power-Transistor, 60 V .

📥 Download Datasheet

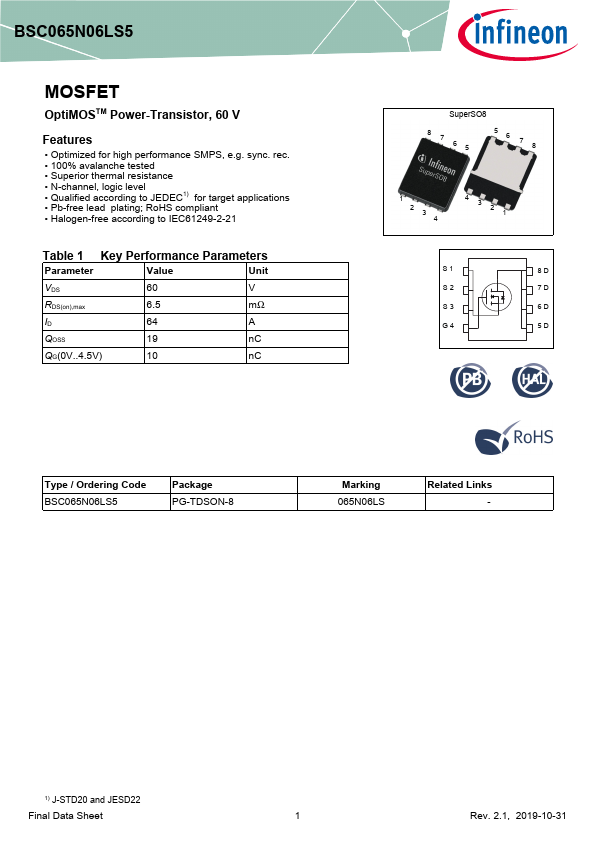

BSC065N06LS5 Datasheet Preview — Preview of BSC065N06LS5 PDF

Datasheet Specifications

Part number: BSC065N06LS5
Manufacturer: Infineon ↗
File Size: 1.28 MB
Datasheet: BSC065N06LS5-Infineon.pdf
Description: 60V MOSFET

Features

* Optimized for high performance SMPS, e. g. sync. rec.
* 100% avalanche tested
* Superior thermal resistance
* N-channel, logic level

Applications

* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 6.5 mΩ ID 64 A QOSS 19 nC QG(0V. .4.5V) 10 nC SuperSO8 8 7 65 56 78 1 23 4 4321 S1 8D S2 7D S

BSC065N06LS5 Distributors
