BTS7004-1EPP - Smart High-Side Power Switch

BTS7004-1EPP Description

BTS7004-1EPP PROFET™ +2 12V Smart High-Side Power Switch 1x 4.4 mΩ Package Marking PG-TSDSO-14 7004-1P 1 Overview Potential Applications The BTS7004-1EPP is a Smart High-Side Power Switch, providing protection functions and diagnosis.

BTS7004-1EPP Features

* High-Side Switch with Diagnosis and Embedded Protection
* Part of PROFET™ +2 12V Family
* ReverseON for low power dissipation in Reverse Polarity
* Switch ON capability while Inverse Current condition (InverseON)
* Green Product (RoHS compliant) Protection

BTS7004-1EPP Applications

* Suitable for driving 15 A resistive, inductive and capacitive loads
* Replaces electromechanical relays, fuses and discrete circuits
* Suitable for driving glow plug, heating loads, DC motor and for power distribution VBAT ZWIRE Logic Supply VDD GPIO GPIO DZ2 CVS2 Mic

📥 Download Datasheet

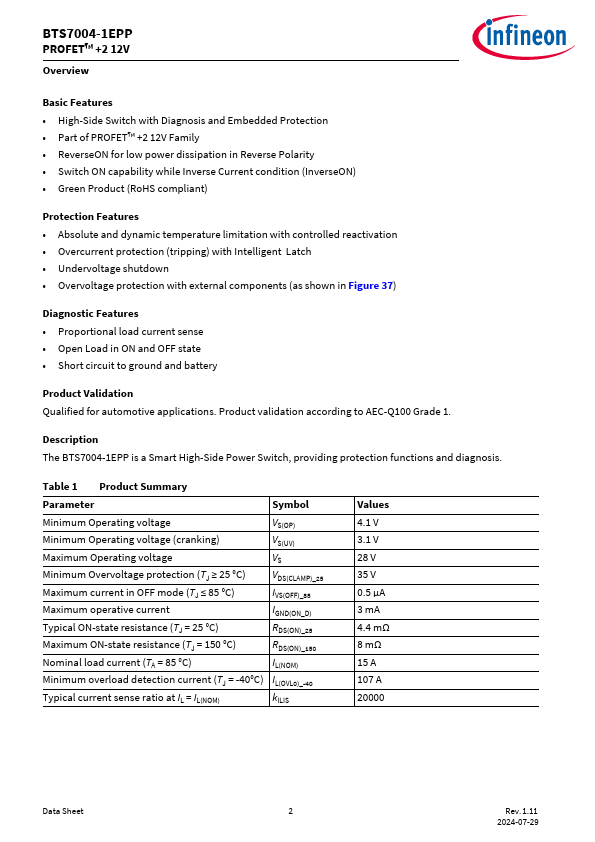

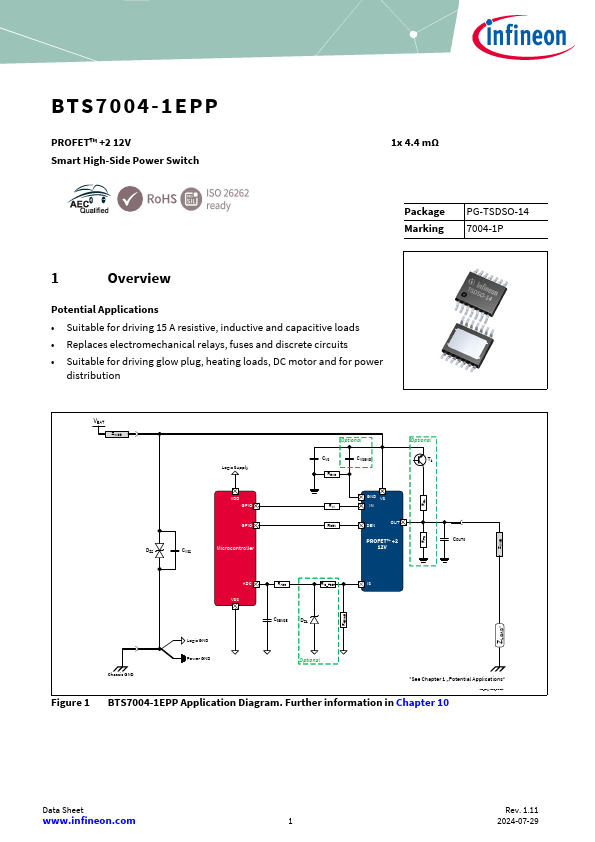

Preview of BTS7004-1EPP PDF

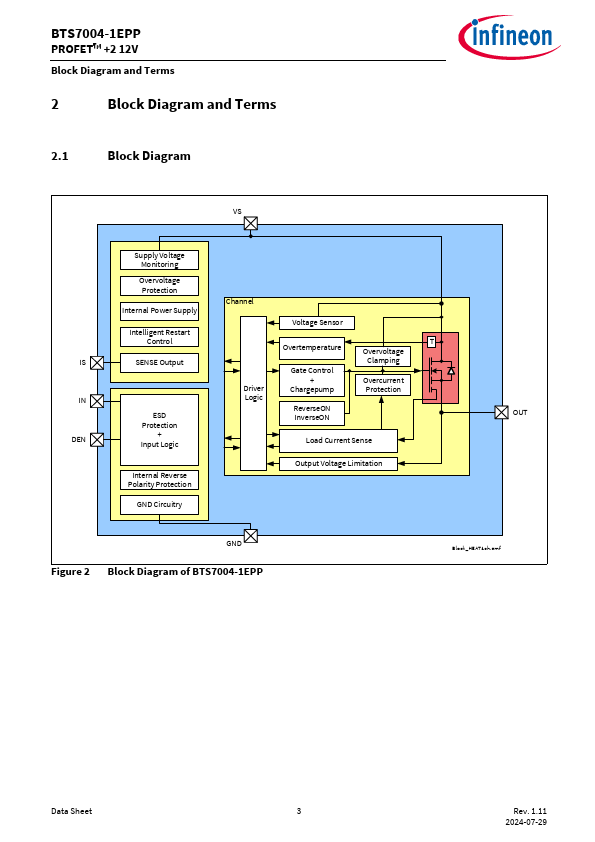

datasheet Preview Page 2 datasheet Preview Page 3
