BTS70020-1ESP Datasheet - Infineon

Smart High-Side Power Switch

BTS70020-1ESP Features

* High-Side Switch with Diagnosis and Embedded Protection

* Part of PROFET™ +2 12V Family

* PRO-SIL™ ISO 26262-ready for supporting the integrator in evaluation of hardware element according to ISO 26262:2018 Clause 8-13

* Capacitive Load Switching mode

* Reve

BTS70020-1ESP General Description

The BTS70020-1ESP is a Smart High-Side Power Switch, providing protection functions and diagnosis. Table 1 Product Summary Parameter Symbol Minimum Operating voltage Minimum Operating voltage (cranking) Maximum Operating voltage Minimum Overvoltage protection (TJ ≥ 25 °C) Maximum current in OFF .

BTS70020-1ESP Datasheet (891.50 KB)

Preview of BTS70020-1ESP PDF

Datasheet Details

Part number:

BTS70020-1ESP

Manufacturer:

Infineon ↗

File Size:

891.50 KB

Description:

Smart high-side power switch.

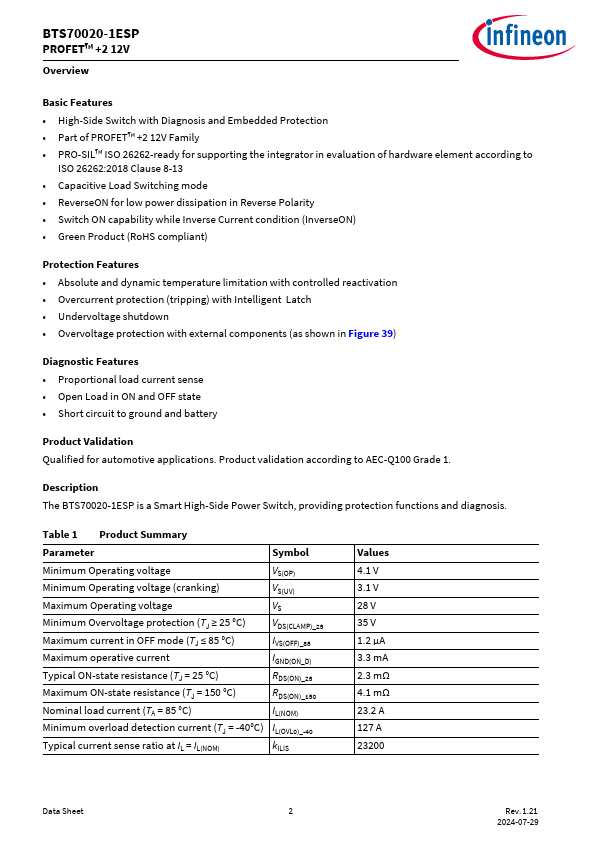

BTS70020-1ESP PROFET™ +2 12V Smart High-Side Power Switch 1x 2.3 mΩ Package Marking PG-TSDSO-24 70020-1ESP 1 Overview Potential Applications

📁 Related Datasheet

BTS7002-1EPP Smart High-Side Power Switch (Infineon)

BTS70012-1ESP Smart High-Side Power Switch (Infineon)

BTS70015-1ESP Smart High-Side Power Switch (Infineon)

BTS7004-1EPP Smart High-Side Power Switch (Infineon)

BTS7006-1EPP Smart High-Side Power Switch (Infineon)

BTS7008-1EPA Smart High-Side Power Switch (Infineon)

BTS7008-1EPP Smart High-Side Power Switch (Infineon)

BTS7008-2EPA Smart High-Side Power Switch (Infineon)

BTS7010-1EPA Smart High-Side Power Switch (Infineon)

BTS7012-1EPA Smart High-Side Power Switch (Infineon)

TAGS

BTS70020-1ESP Smart High-Side Power Switch Infineon

Image Gallery

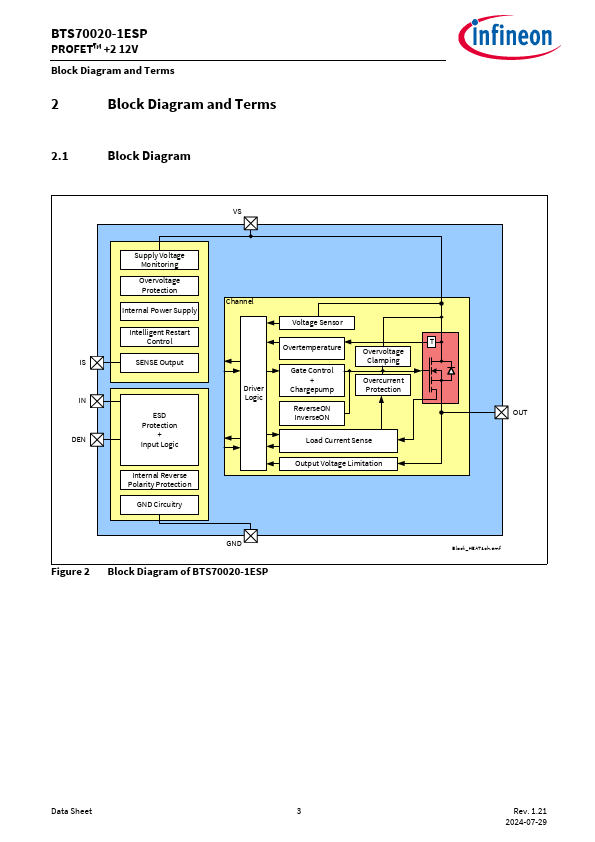

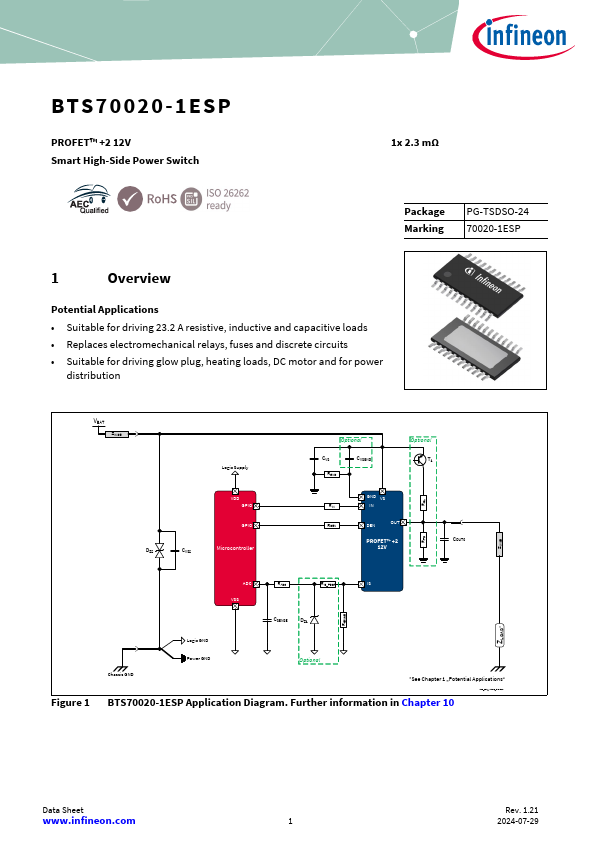

BTS70020-1ESP Datasheet Preview Page 2 BTS70020-1ESP Datasheet Preview Page 3
