BTS70012-1ESP Datasheet - Infineon

BTS70012-1ESP Smart High-Side Power Switch

The BTS70012-1ESP is a Smart High-Side Power Switch, providing protection functions and diagnosis. Table 1 Product Summary Parameter Symbol Minimum Operating voltage Minimum Operating voltage (cranking) Maximum Operating voltage Minimum Overvoltage protection (TJ ≥ 25 °C) Maximum current in OFF .
BTS70012-1ESP PROFET™ +2 12V Smart High-Side Power Switch 1x 1.4 mΩ Package Marking PG-TSDSO-24 70012-1ESP 1 Overview Potential Applications Suitable for driving 31.3 A resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Suitable for driving glow plug, heating loads, DC motor and for power distribution VBAT ZWIRE Logic Supply VDD GPIO GPIO DZ2 CVS2 Microcontroller Optional CVS RGND CVSGND Optional .

BTS70012-1ESP Features

* High-Side Switch with Diagnosis and Embedded Protection

* Part of PROFET™ +2 12V Family

* PRO-SIL™ ISO 26262-ready for supporting the integrator in evaluation of hardware element according to ISO 26262:2018 Clause 8-13

* Capacitive Load Switching mode

* Reve

BTS70012-1ESP Datasheet (1.78 MB)

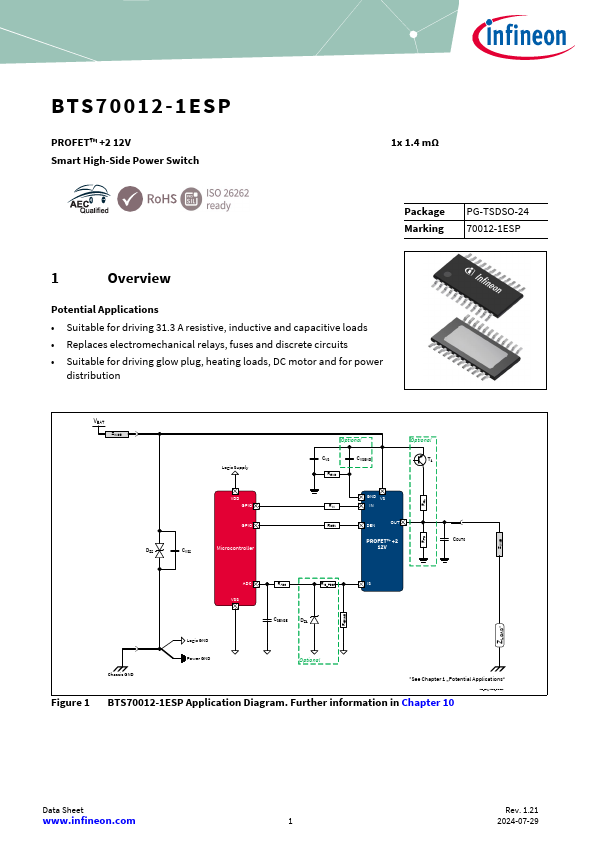

Preview of BTS70012-1ESP PDF

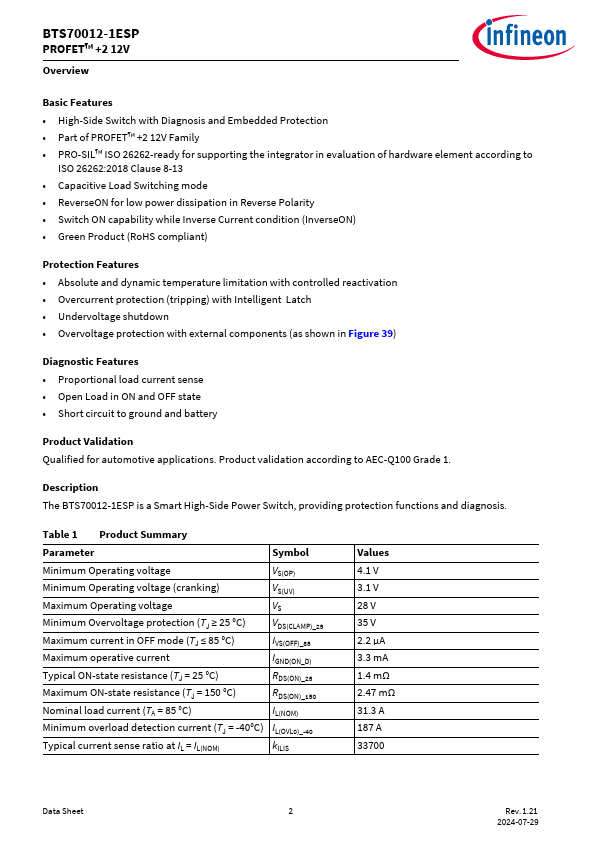

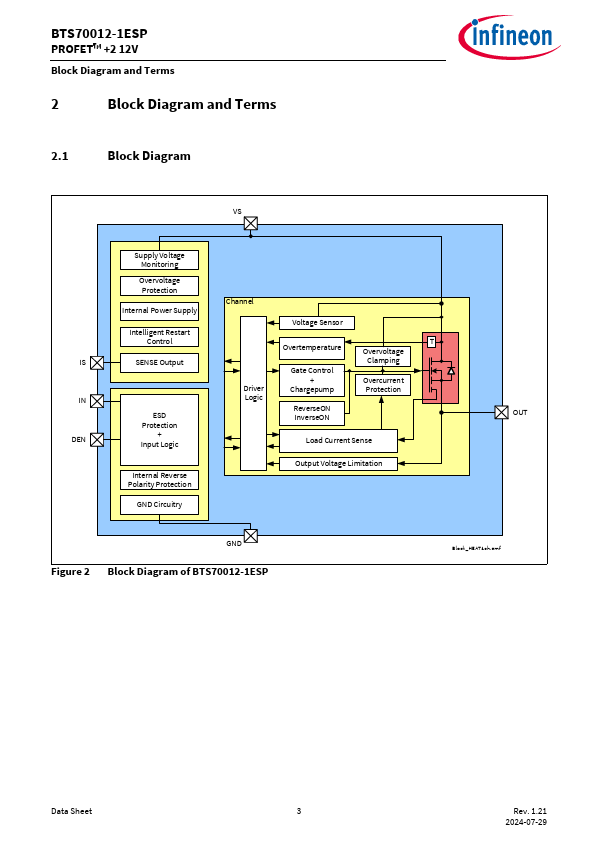

BTS70012-1ESP Datasheet Preview Page 2 BTS70012-1ESP Datasheet Preview Page 3

Datasheet Details

Part number:

BTS70012-1ESP

Manufacturer:

Infineon ↗

File Size:

1.78 MB

Description:

Smart high-side power switch.
