BTS7006-1EPP Datasheet - Infineon

BTS7006-1EPP Smart High-Side Power Switch

The BTS7006-1EPP is a Smart High-Side Power Switch, providing protection functions and diagnosis. Table 1 Product Summary Parameter Symbol Minimum Operating voltage Minimum Operating voltage (cranking) Maximum Operating voltage Minimum Overvoltage protection (TJ ≥ 25 °C) Maximum current in OFF m.

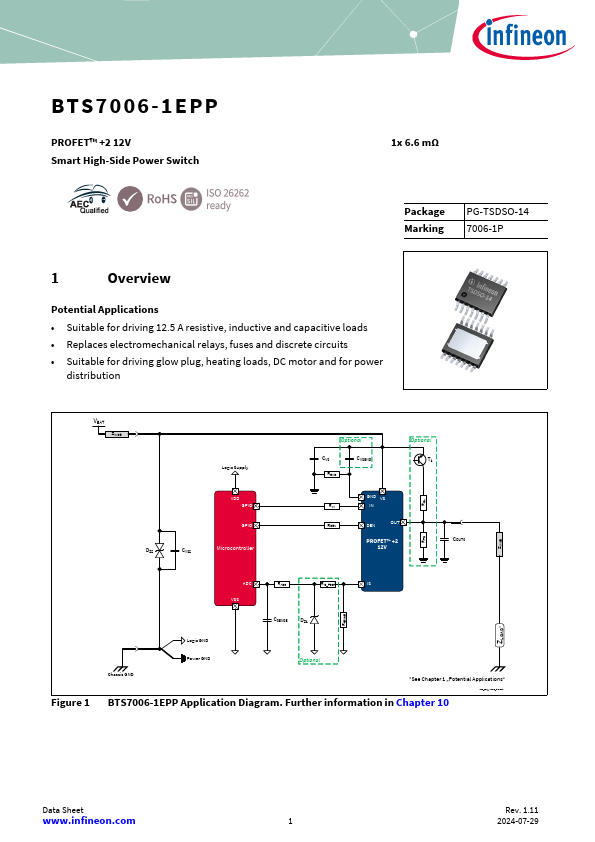

BTS7006-1EPP PROFET™ +2 12V Smart High-Side Power Switch 1x 6.6 mΩ Package Marking PG-TSDSO-14 7006-1P 1 Overview Potential Applications Suitable for driving 12.5 A resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Suitable for driving glow plug, heating loads, DC motor and for power distribution VBAT ZWIRE Logic Supply VDD GPIO GPIO DZ2 CVS2 Microcontroller Optional CVS RGND CVSGND Optional T1 .

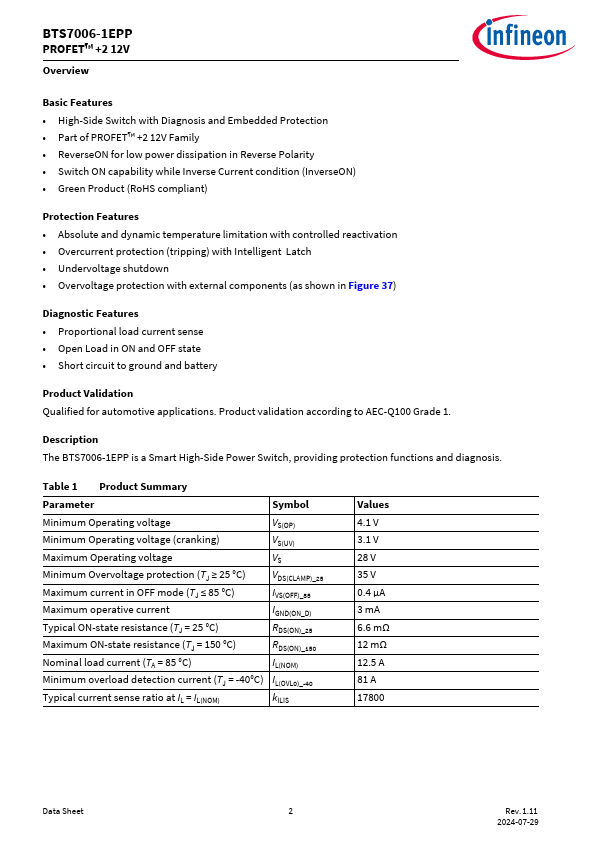

BTS7006-1EPP Features

* High-Side Switch with Diagnosis and Embedded Protection

* Part of PROFET™ +2 12V Family

* ReverseON for low power dissipation in Reverse Polarity

* Switch ON capability while Inverse Current condition (InverseON)

* Green Product (RoHS compliant) Protection

BTS7006-1EPP Datasheet (1.69 MB)

Preview of BTS7006-1EPP PDF

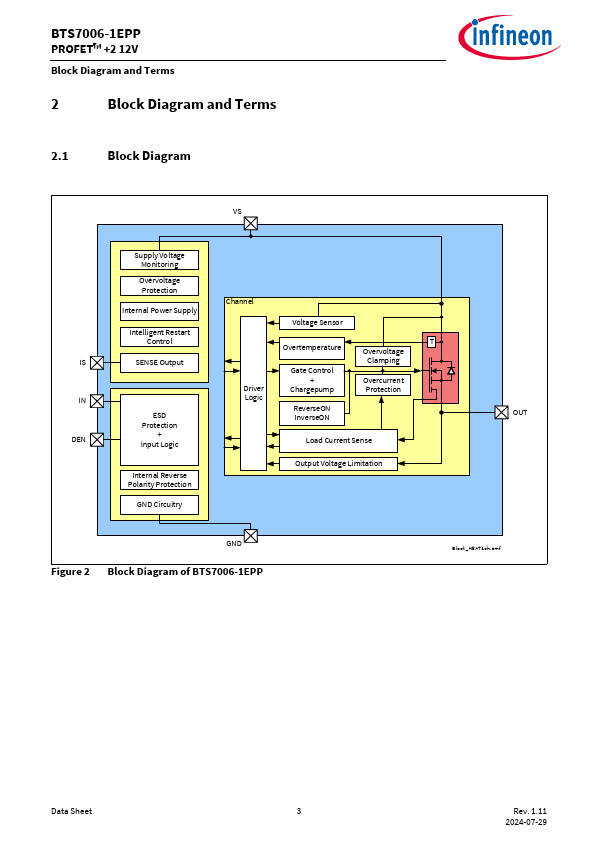

BTS7006-1EPP Datasheet Preview Page 2 BTS7006-1EPP Datasheet Preview Page 3

Datasheet Details

Part number:

BTS7006-1EPP

Manufacturer:

Infineon ↗

File Size:

1.69 MB

Description:

Smart high-side power switch.
