BTS7030-2EPG Datasheet - Infineon

BTS7030-2EPG Smart High-Side Power Switch

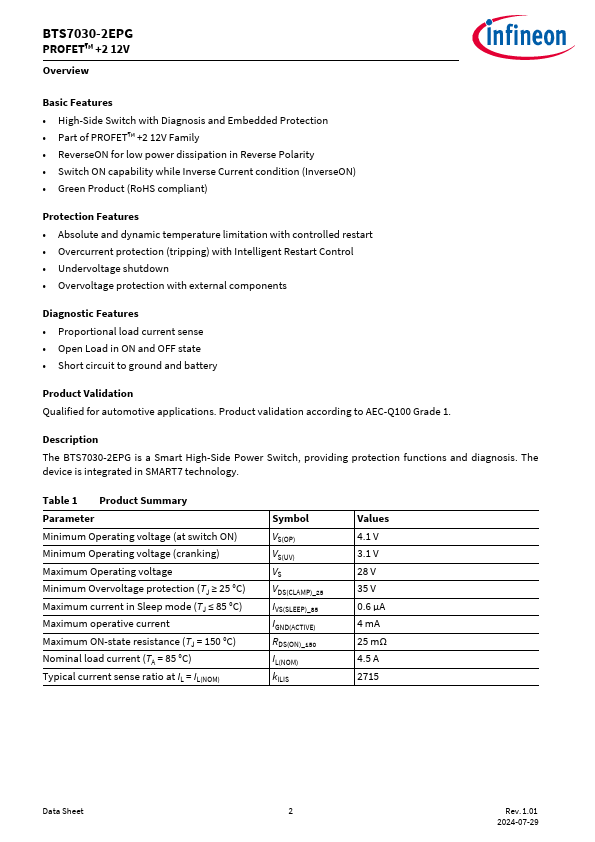

The BTS7030-2EPG is a Smart High-Side Power Switch, providing protection functions and diagnosis. The device is integrated in SMART7 technology. Table 1 Product Summary Parameter Minimum Operating voltage (at switch ON) Minimum Operating voltage (cranking) Maximum Operating voltage Minimum Overvolt.

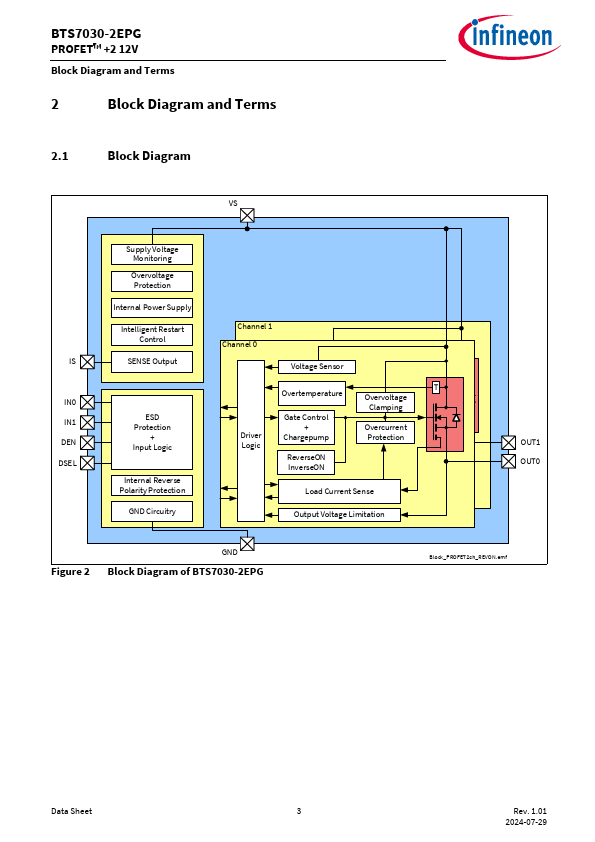

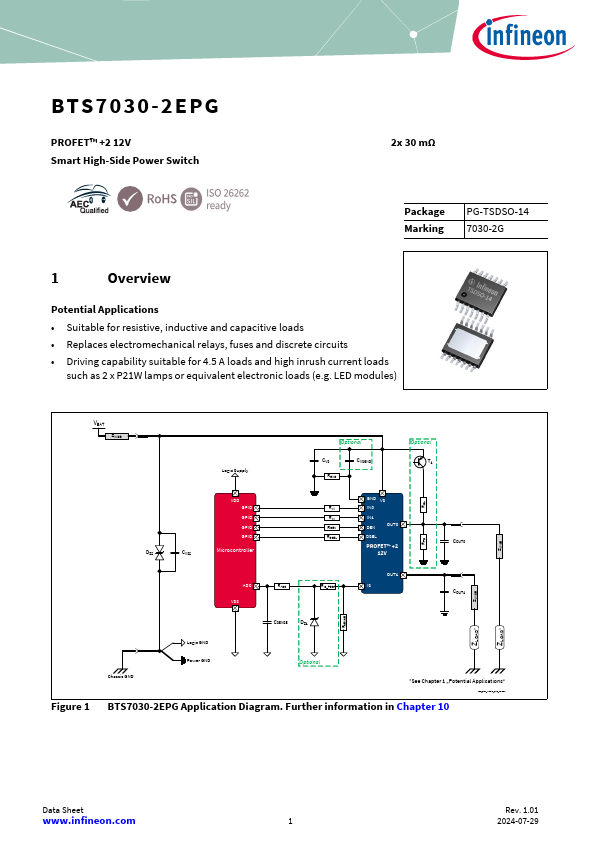

BTS7030-2EPG PROFET™ +2 12V Smart High-Side Power Switch 2x 30 mΩ Package Marking PG-TSDSO-14 7030-2G 1 Overview Potential Applications Suitable for resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Driving capability suitable for 4.5 A loads and high inrush current loads such as 2 x P21W lamps or equivalent electronic loads (e.g. LED modules) VBAT ZWIRE Logic Supply Optional CVS RGND CVSGND Optional.

BTS7030-2EPG Features

* High-Side Switch with Diagnosis and Embedded Protection

* Part of PROFET™ +2 12V Family

* ReverseON for low power dissipation in Reverse Polarity

* Switch ON capability while Inverse Current condition (InverseON)

* Green Product (RoHS compliant) Protection

BTS7030-2EPG Datasheet (759.20 KB)
