BTS7200-2EPC Datasheet (Infineon) - Smart High-Side Power Switch

BTS7200-2EPC, Smart High-Side Power Switch

The BTS7200-2EPC is a Smart High-Side Power Switch, providing protection functions and diagnosis.

The device is integrated in SMART7 technology.

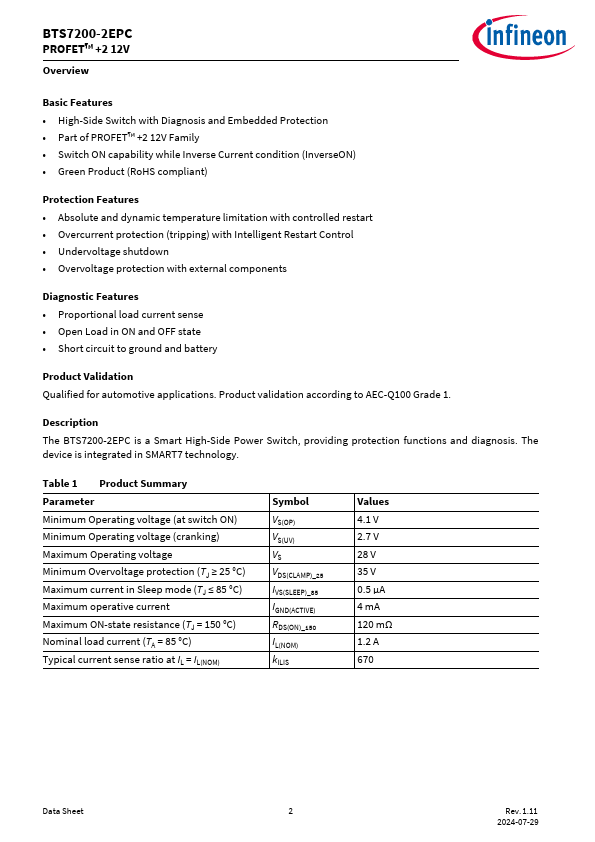

Table 1 Product Summary Parameter Minimum Operating voltage (at switch ON) Minimum Operating voltage (cranking) Maximum Operating voltage Minimum Overvolt

BTS7200-2EPC PROFET™ +2 12V Smart High-Side Power Switch 2x 200 mΩ Package Marking PG-TSDSO-14 7200-2C 1 Overview Potential Applications Suitable for resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Driving capability suitable for 1.2 A loads (including relays) and high inrush current loads such as R5W lamps or equivalent electronic loads (e.g.

LED modules) Extreme Cranking capability down to 2.

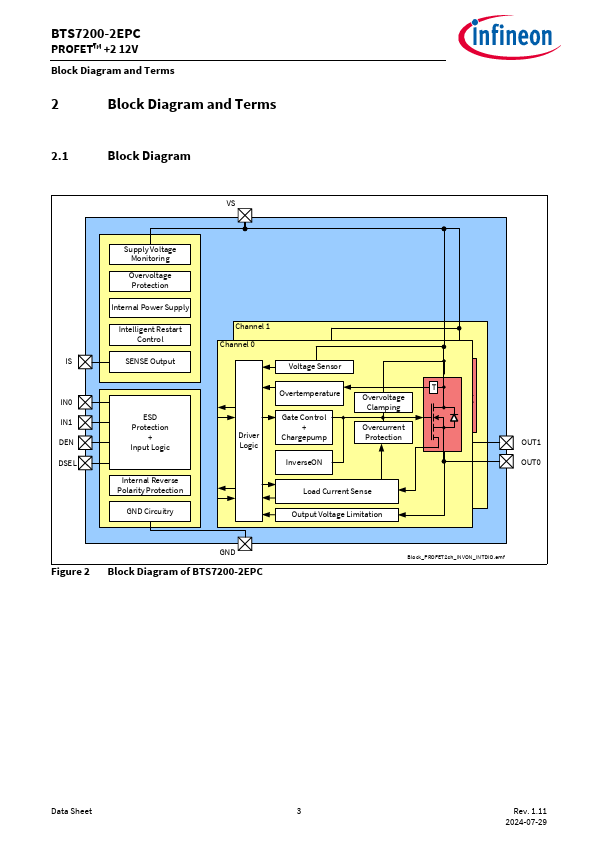

BTS7200-2EPC Features

* High-Side Switch with Diagnosis and Embedded Protection

* Part of PROFET™ +2 12V Family

* Switch ON capability while Inverse Current condition (InverseON)

* Green Product (RoHS compliant) Protection Features

* Absolute and dynamic temperature limitation wit
