BTS7200-4EPA Datasheet - Infineon

BTS7200-4EPA-Infineon.pdf

Preview of BTS7200-4EPA PDF

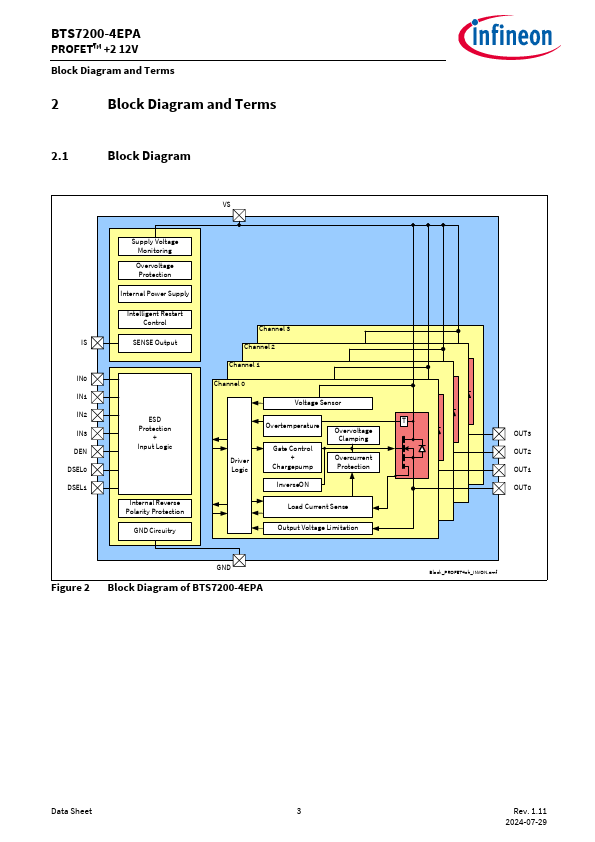

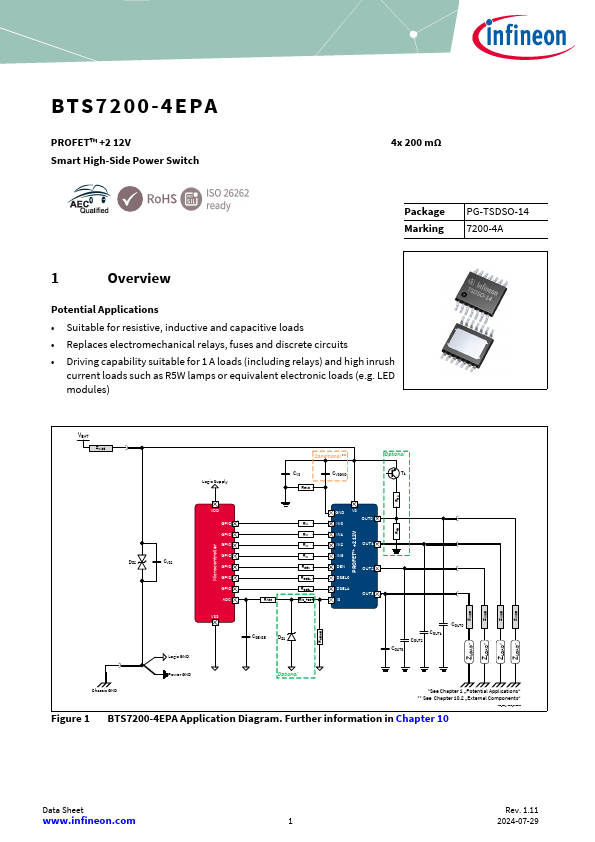

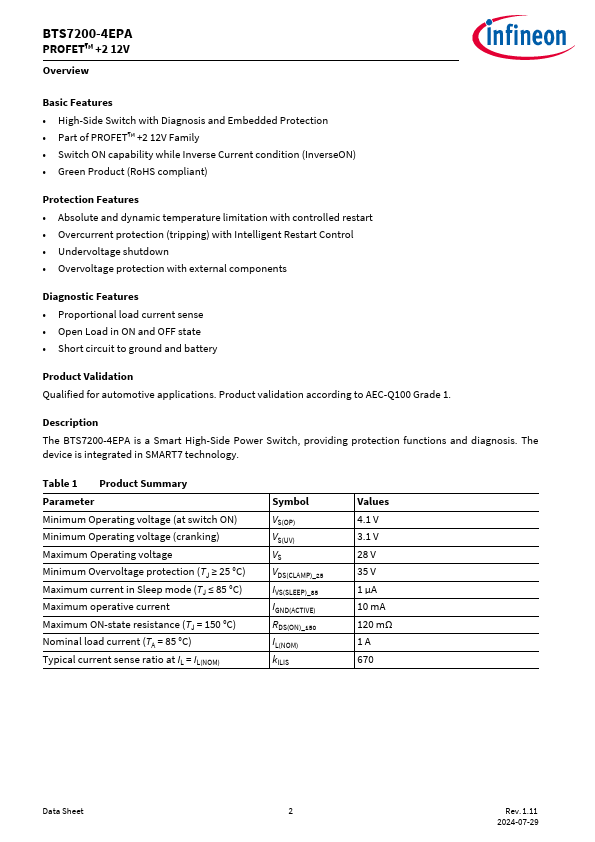

BTS7200-4EPA Datasheet Preview Page 2 BTS7200-4EPA Datasheet Preview Page 3

Datasheet Details

Part number:

BTS7200-4EPA

Manufacturer:

Infineon ↗

File Size:

838.03 KB

Description:

Smart high-side power switch.

BTS7200-4EPA, Smart High-Side Power Switch

The BTS7200-4EPA is a Smart High-Side Power Switch, providing protection functions and diagnosis.

The device is integrated in SMART7 technology.

Table 1 Product Summary Parameter Minimum Operating voltage (at switch ON) Minimum Operating voltage (cranking) Maximum Operating voltage Minimum Overvolt

BTS7200-4EPA PROFET™ +2 12V Smart High-Side Power Switch 4x 200 mΩ Package Marking PG-TSDSO-14 7200-4A 1 Overview Potential Applications Suitable for resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Driving capability suitable for 1 A loads (including relays) and high inrush current loads such as R5W lamps or equivalent electronic loads (e.g.

LED modules) VBAT ZWIRE Logic Supply Conditional

BTS7200-4EPA Features

* High-Side Switch with Diagnosis and Embedded Protection

* Part of PROFET™ +2 12V Family

* Switch ON capability while Inverse Current condition (InverseON)

* Green Product (RoHS compliant) Protection Features

* Absolute and dynamic temperature limitation wit
