BTT3018EJ Datasheet - Infineon

Smart Low-Side Power Switch

BTT3018EJ Features

* Single channel device optimized for 24 V applications

* Electrostatic discharge protection (ESD)

* Over current, active clamping and over temperature protection

* Over temperature latch shutdown

* Supply pin undervoltage protection

* Dedicated status

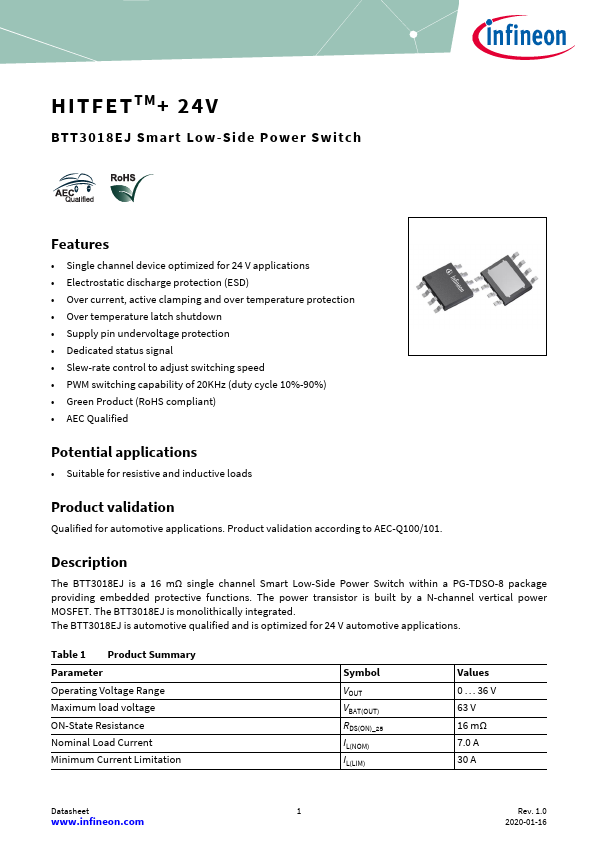

BTT3018EJ General Description

The BTT3018EJ is a 16 mΩ single channel Smart Low-Side Power Switch within a PG-TDSO-8 package providing embedded protective functions. The power transistor is built by a N-channel vertical power MOSFET. The BTT3018EJ is monolithically integrated. The BTT3018EJ is automotive qualified and is optimiz.

BTT3018EJ Datasheet (1.48 MB)
