CYUSB3082 - USB 5 Gbps peripheral controller

CYUSB3082 Description

CYUSB308x EZ-USB™ FX5 USB 5 Gbps peripheral controller Overview EZ-USB™ FX5 is a family of USB 5 Gbps peripheral controllers targeting the next-genera.

CYUSB3082 Features

* USB 3.2 Gen 1 (5 Gbps) device port - Integrated 5 Gbps, and 480 Mbps PHYs - USB Type-C plug orientation detection and correction - Up to 30 USB endpoints, 15 IN and 15 OUT; each end point is configured as bulk, isochronous, or interrupt type
* Dual-core CPU subsystem - 150 MHz Arm®

CYUSB3082 Applications

* in camera, video, imaging, and data acquisition markets. EZ-USB™ FX5 consists of dual Arm® Cortex®-M4 and M0+ core CPUs, 512 KB flash, 128 KB SRAM, 128 KB ROM, seven Serial Communication Blocks (SCBs), cryptography accelerator, and high bandwidth data subsystem providing DMA data transfers between L

📥 Download Datasheet

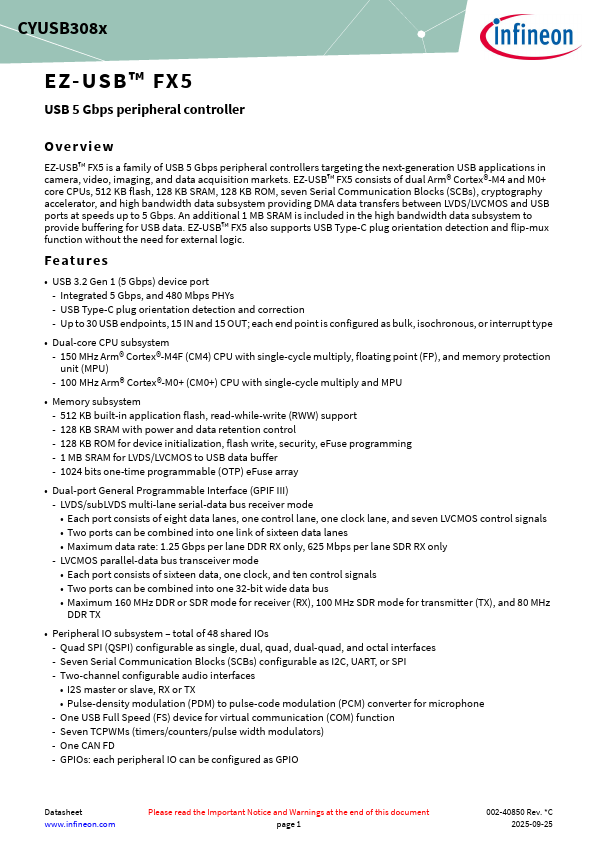

Preview of CYUSB3082 PDF

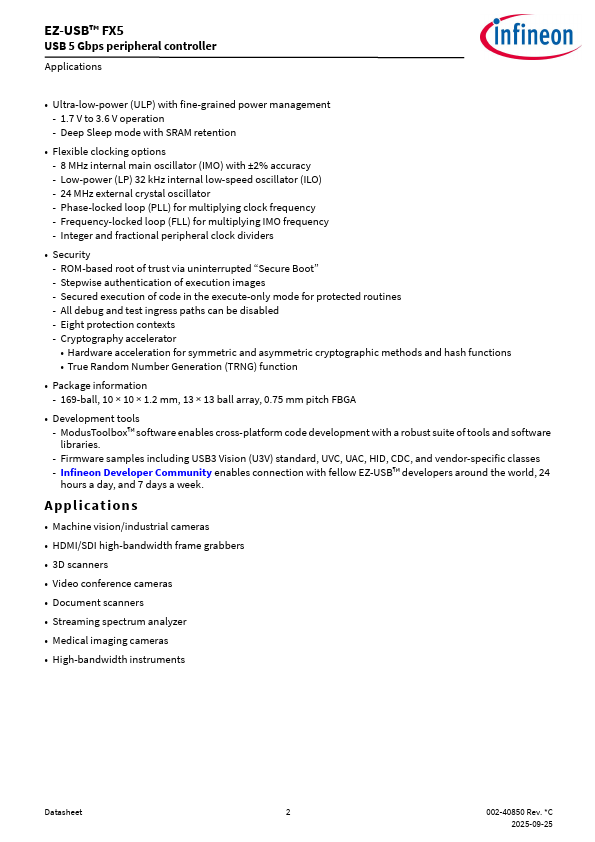

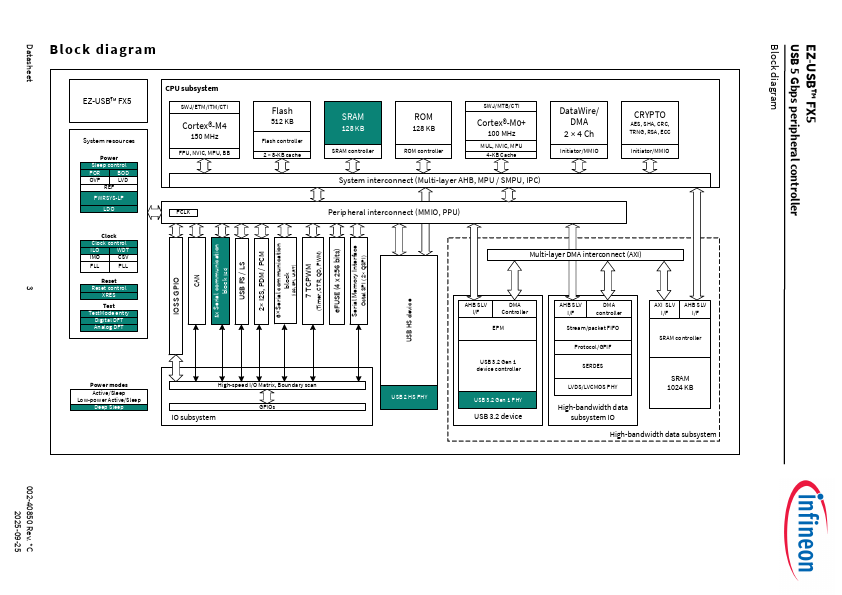

datasheet Preview Page 2 datasheet Preview Page 3
