CYUSB3083, CYUSB3082 - USB 5 Gbps peripheral controller

CYUSB3083 Description

CYUSB308x EZ-USB™ FX5 USB 5 Gbps peripheral controller Overview EZ-USB™ FX5 is a family of USB 5 Gbps peripheral controllers targeting the next-genera.

CYUSB3083 Features

* USB 3.2 Gen 1 (5 Gbps) device port - Integrated 5 Gbps, and 480 Mbps PHYs - USB Type-C plug orientation detection and correction - Up to 30 USB endpoints, 15 IN and 15 OUT; each end point is configured as bulk, isochronous, or interrupt type
* Dual-core CPU subsystem - 150 MHz Arm®

CYUSB3083 Applications

* in camera, video, imaging, and data acquisition markets. EZ-USB™ FX5 consists of dual Arm® Cortex®-M4 and M0+ core CPUs, 512 KB flash, 128 KB SRAM, 128 KB ROM, seven Serial Communication Blocks (SCBs), cryptography accelerator, and high bandwidth data subsystem providing DMA data transfers between L

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CYUSB3083, CYUSB3082. Please refer to the document for exact specifications by model.

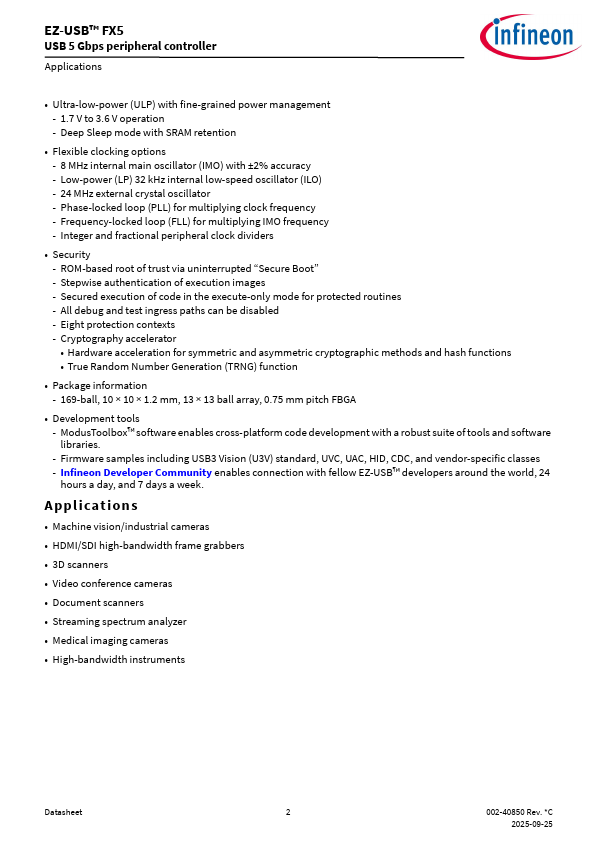

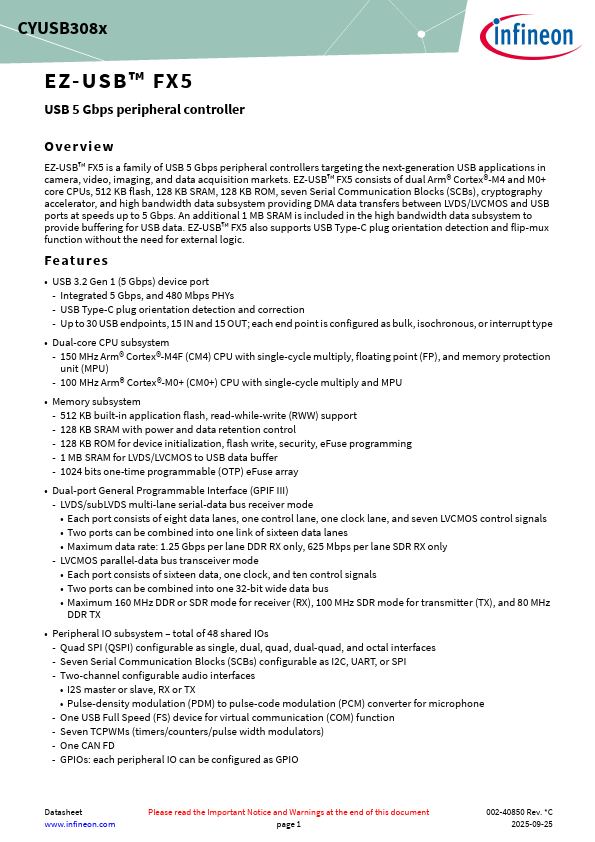

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CYUSB3083, CYUSB3082
Manufacturer
Infineon ↗
File Size
826.05 KB
Datasheet
CYUSB3082-Infineon.pdf
Description
USB 5 Gbps peripheral controller
Note
This datasheet PDF includes multiple part numbers: CYUSB3083, CYUSB3082.
Please refer to the document for exact specifications by model.
