DDB6U180N16RR_B37

IGBT

DDB6U180N16RR_B37 Features

* Tvj op = 150°C Mechanical Features

* Al2O3 substrate with low thermal resistance

* High power density

* Isolated base plate

* Compact design

* PressFIT contact technology

* RoHS compliant

* Standard housing Module Label Code Barcode

DDB6U180N16RR_B37 Datasheet (623.12 KB)

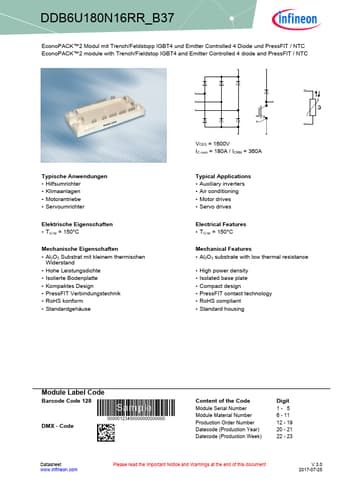

Preview of DDB6U180N16RR_B37 PDF

Datasheet Details

Part number:

DDB6U180N16RR_B37

Manufacturer:

Infineon ↗

File Size:

623.12 KB

Description:

Igbt.
DDB6U180N16RR_B37 EconoPACK™2 Modul mit Trench/Feldstopp IGBT4 und Emitter Controlled 4 Diode und PressFIT / NTC EconoPACK™2 module with Trench/Fields.
