F4-150R17N3P4_B58 - EconoPACK3 module

Name: F4-150R17N3P4_B58
SKU: F4-150R17N3P4_B58-1578514

Infineon

📥 Download Datasheet

F4-150R17N3P4_B58 Datasheet Preview — Preview of F4-150R17N3P4_B58 PDF

Datasheet Details

Part number	F4-150R17N3P4_B58
Manufacturer	Infineon
File Size	467.49 KB
Description	EconoPACK3 module
Datasheet	F4-150R17N3P4_B58-Infineon.pdf

F4-150R17N3P4_B58 Product details

Description

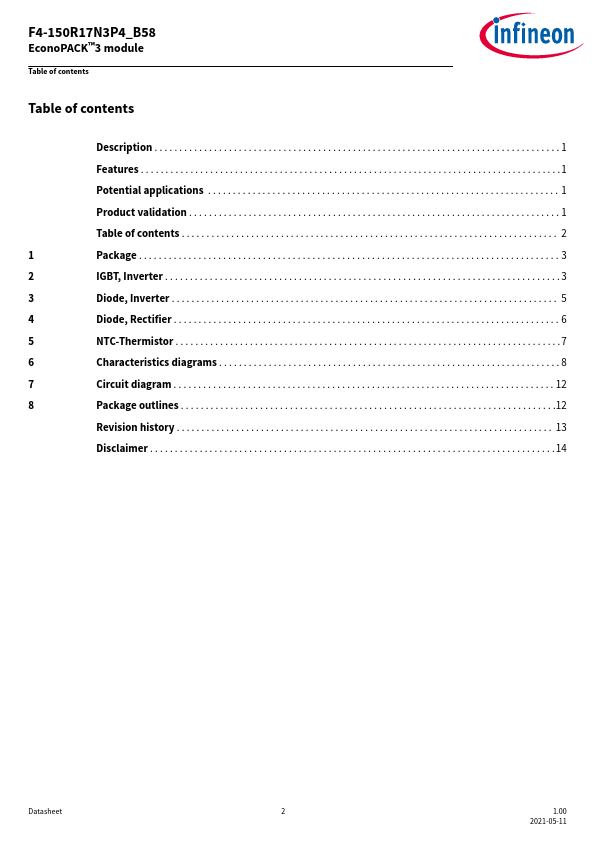

J Datasheet www.infineon.com Please read the Important Notice and Warnings at the end of this document 1.00 2021-05-11 F4-150R17N3P4_B58 EconoPACK™3 module Table of contents Table of contents Description .

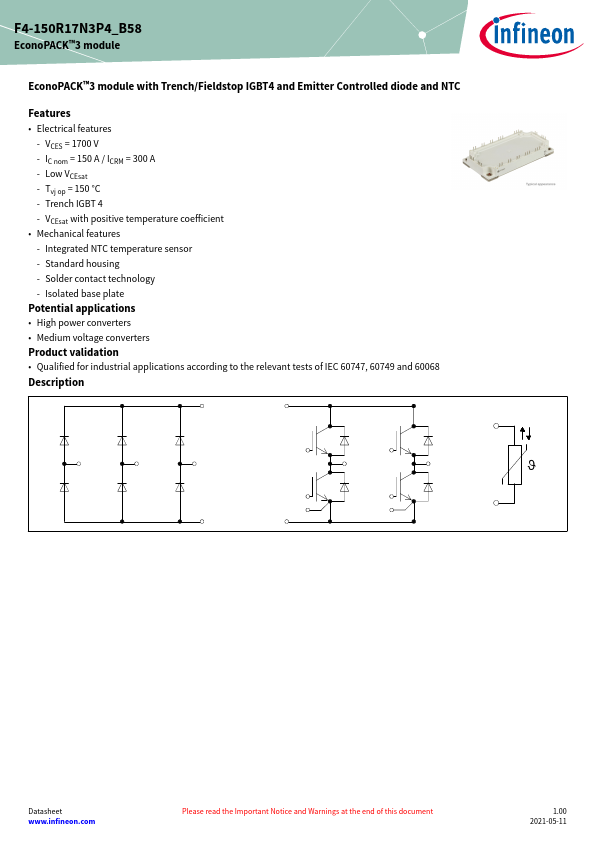

Features

Electrical features - VCES = 1700 V - IC nom = 150 A / ICRM = 300 A - Low VCEsat - Tvj op = 150 °C - Trench IGBT 4 - VCEsat with positive temperature coefficient.
Mechanical features - Integrated NTC temperature sensor - Standard housing - Solder contact technology - Isolated base plate Potential.
