FS800R07A2E3 - IGBT-Module

FS800R07A2E3 Description

Technische Information / Technical Information IGBT-Modul IGBT-Module FS800R07A2E3 HybridPACK™2 Modul mit Trench/Feldstopp IGBT3 und Emitter Contro.

FS800R07A2E3 Features

* Increased blocking voltage capability to 650V
* High Current Density
* Low Inductive Design
* Low Switching Losses
* Tvj op = 150°C
* Trench IGBT

FS800R07A2E3 Applications

* Automotive Applications
* Hybrid Electrical Vehicles (H)EV
* Commercial Agriculture Vehicles
* Motor Drives Elektrische Eigenschaften
* Erhöhte Sperrspannungsfestigkeit auf 650V
* Hohe Stromdichte
* Niederinduktives Design
* Niedrige

📥 Download Datasheet

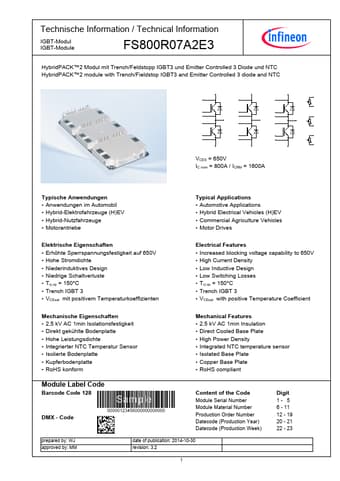

Preview of FS800R07A2E3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
