FS8160

Dual Phase-locked Loop IC

FS8160 Features

* ‹ Supply voltage operating range: 2.7 to 3.6 V ‹ Maximum input frequency: 1.1 GHz/1.1 GHz (main/auxiliary) ‹ Low current consumption (IDD,total typically 5 mA at VDD,main = VDD,aux = 3.0 V and < 1 µA in power down mode) ‹ 16-bit programmable input (both main and auxiliary) frequency dividers (includ

FS8160 General Description

The FS8160 is a serial data input, fully programmable dual phase-locked loop IC for use in the local oscillator subsystem of radio transceivers. When combined with external VCOs, the FS8160 becomes the core of a very low power dual frequency synthesizer wellsuited for mobile communication applicatio.

FS8160 Datasheet (274.57 KB)

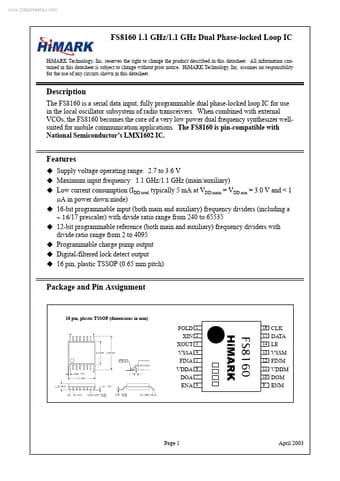

Preview of FS8160 PDF

Datasheet Details

Part number:

FS8160

Manufacturer:

Himark

File Size:

274.57 KB

Description:

Dual phase-locked loop ic.
www.DataSheet4U.com FS8160 1.1 GHz/1.1 GHz Dual Phase-locked Loop IC HiMARK Technology, Inc. reserves the right to change the product described in th.
