FS8107E Datasheet - Himark

Low Power Phase-Locked Loop IC

FS8107E Features

* High maximum input operating frequency

* 100 MHz at VDD1 = 1.0 V Up to 22 MHz internal crystal oscillator reference frequency at VDD1 = 1.0 V Extremely low current consumption (IDD,total typically 0.4 mA at fFIN = 90 MHz) 16-bit programmable input frequency divider (including a ÷ 32/

FS8107E General Description

The FS8107E is a serial data input, phase-locked loop IC with programmable input and reference frequency dividers. When combined with a VCO, the FS8107E becomes the core of a very low power frequency synthesizer well-suited for mobile communication applications such as paging systems. Compared to th.

FS8107E Datasheet (156.25 KB)

Rating: 1 ★ (7 votes)

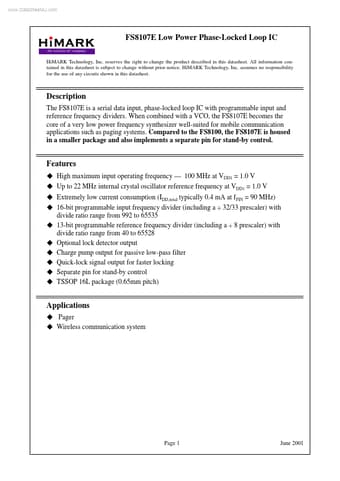

FS8107E Datasheet Preview — Preview of FS8107E PDF

Datasheet Details

Part number:

FS8107E

Manufacturer:

Himark

File Size:

156.25 KB

Description:

Low power phase-locked loop ic.
www.DataSheet4U.com FS8107E Low Power Phase-Locked Loop IC the wireless IC company HiMARK Technology, Inc. reserves the right to change the product .
