FS8108 - Low Power Phase-Locked Loop IC

Product Overview

Part number	FS8108
Manufacturer	Himark
File Size	157.52 KB
Description	Low Power Phase-Locked Loop IC
Datasheet	FS8108 Datasheet

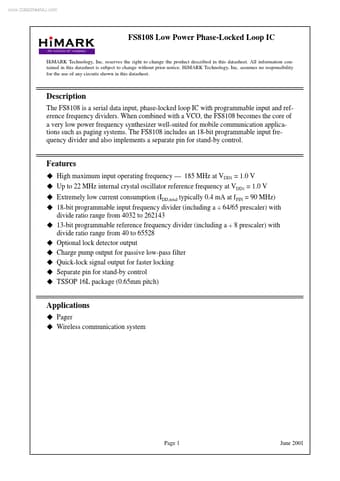

Additional preview pages of the FS8108 datasheet.

The FS8108 is a serial data input, phase-locked loop IC with programmable input and reference frequency dividers.

High maximum input operating frequency.
185 MHz at VDD1 = 1.0 V Up to 22 MHz internal crystal oscillator reference frequency at VDD1 = 1.0 V Extremely low current consumption (IDD,total typically 0.4 mA at fFIN = 90 MHz) 18-bit programmable input frequency divider (including a ÷ 64/65 prescaler) with divide ratio range from 4032 to 262143 13-bit programmable reference frequency divider (including a ÷ 8 prescaler) with divide ratio range from 40 to 65528 Optional lock detecto.
