FS8853 - 300mA LDO Linear Regulator

FS8853 Description

300 mA LDO Linear Regulator FS8853 General .
The FS8853 is a low-dropout linear regulator that operations in the input voltage range from +2.

FS8853 Features

* include short-circuit protection and thermal shutdown protection. The FS8853 devices are available in TO-92, SOT-89 and SOT-23 packages. Features z Low dropout voltage 400mV at 300mA (Typ. ) z Up to ±35mV output voltage accuracy (VIN≦ 7V) Preset at 2.5V, 3.3V Mask options from 1.5V to 5.0V z Quiescen

FS8853 Applications

* z Battery Powered Equipment z Palmtops z Portable Cameras and Video Recorders z Reference Voltage Sources z Post Regulator for Switching Power Ordering Information FS8853-xx x x Package Pin Out A : SOT-23 B : SOT-23 C : SOT-23 E : TO-92 L : SOT-89 I : SOT-89 1.IN 1.GND 1.GND 1.GND 1.GND 1.OUT

📥 Download Datasheet

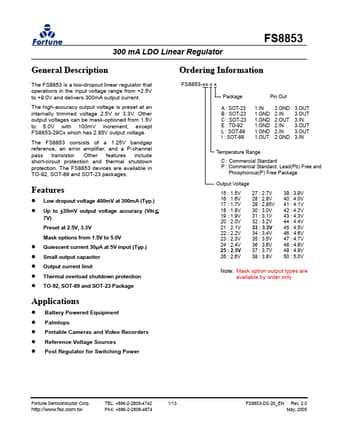

Preview of FS8853 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FS8853
Manufacturer
Fortune Semiconductor
File Size
613.55 KB
Datasheet
FS8853_FortuneSemiconductor.pdf
Description
300mA LDO Linear Regulator
