FS8853A

300mA LDO Linear Regulator

FS8853A Features

* include short-circuit protection and thermal shutdown protection. The FS8853 devices are available in SOT-89-5 and SOT-23-5 packages. Features Low dropout voltage 400mV at 300mA (Typ.) Low 40µA current consumption (Typ.) at Vin=5V High accuracy output voltage: ±35mV Preset at 2.5V, 2.85V, 3.3V Mask

FS8853A General Description

The FS8853A is a low-dropout linear regulator with ON/OFF control. The device operates in the input voltage range from +2.5V to +9.0V and delivers 300mA output current. The high-accuracy (±35mV) output voltage is preset at an internally trimmed voltage 2.5V, 2.85V or 3.3V. Other output voltages can .

FS8853A Datasheet (410.60 KB)

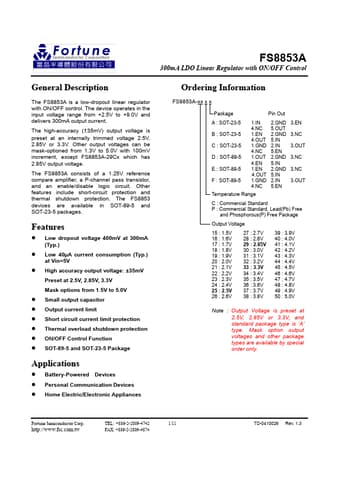

Preview of FS8853A PDF

Datasheet Details

Part number:

FS8853A

Manufacturer:

Fortune Semiconductor

File Size:

410.60 KB

Description:

300ma ldo linear regulator.
