HYS72D128520GR-8-B - Low Profile Registered DDR-I SDRAM-Modules

SDRAM Technology Module height HYS 72D128520GR-7F-B PC2100R-20220-N 256 MBit (x4) 1.2” (stacked with soldering process) 256 MBit (x4) 1.2” (stacked with soldering process) 256 MBit (x4) 1.2” (stacked with laser welding process) 256 MBit (x4) 1.2” (stacked with laser welding process) HYS 72D1285.

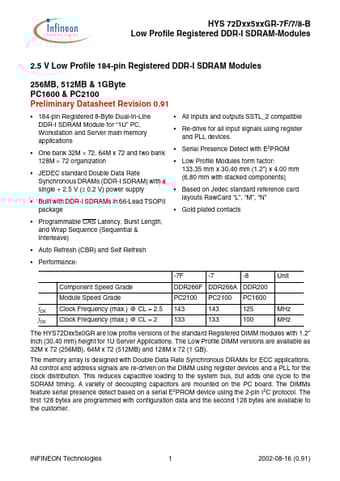

HYS 72Dxx5xxGR-7F/7/8-B Low Profile Registered DDR-I SDRAM-Modules 2.5 V Low Profile 184-pin Registered DDR-I SDRAM Modules 256MB, 512MB & 1GByte PC1600 & PC2100 Preliminary Datasheet Revision 0.91 184-pin Registered 8-Byte Dual-In-Line DDR-I SDRAM Module for “1U” PC, Workstation and Server main memory applications One bank 32M × 72, 64M x 72 and two bank 128M × 72 organization JEDEC standard Double Data Rate Synchronous DRAMs (DDR-I SDRAM) with a single + 2.5 V (±.

HYS72D128520GR-8-B Features

* SPD EEPROM VDD, VDDQ VREF V SS DM D0 - D17 D0 - D17 D0
