IAUC80N04S6L032 Datasheet - Infineon

IAUC80N04S6L032 automotive power MOSFET

IAUC80N04S6L032 Features

* OptiMOS™ - power MOSFET for automotive applications VDS RDS(on),max ID 40 V 3.2 mW 80 A PG-TDSON-8

* N-channel - Enhancement mode - Logic Level

* AEC Q101 qualified

* MSL1 up to 260°C peak reflow 1

* 175°C operating temperature

* Green Produc

IAUC80N04S6L032-Infineon.pdf

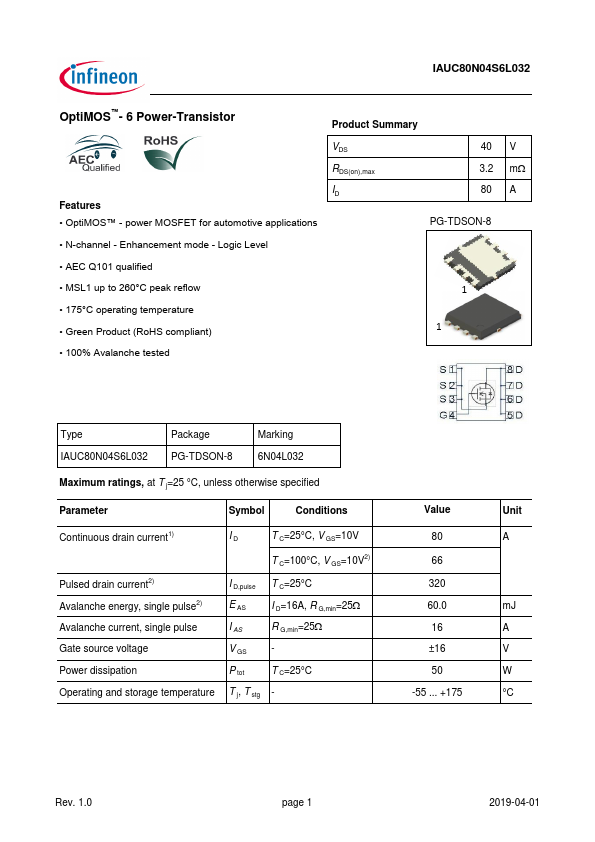

Preview of IAUC80N04S6L032 PDF

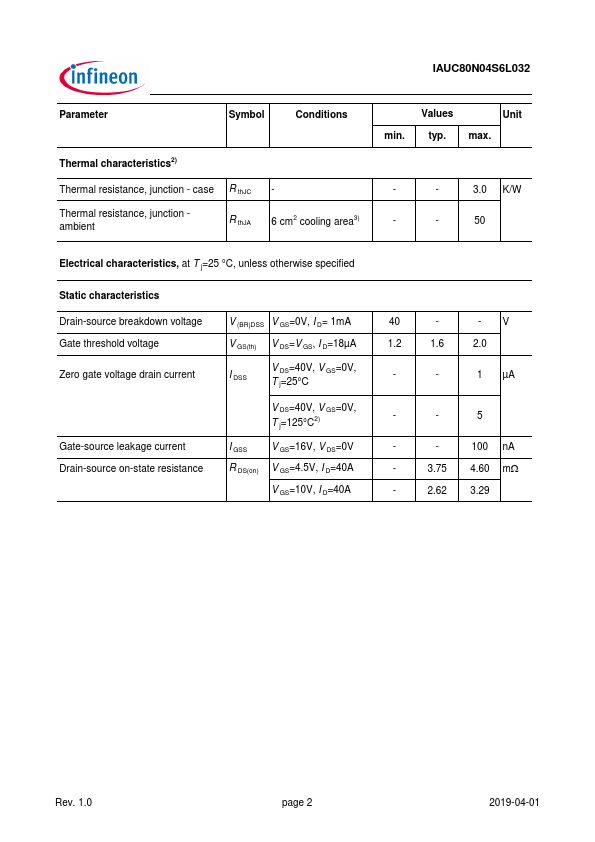

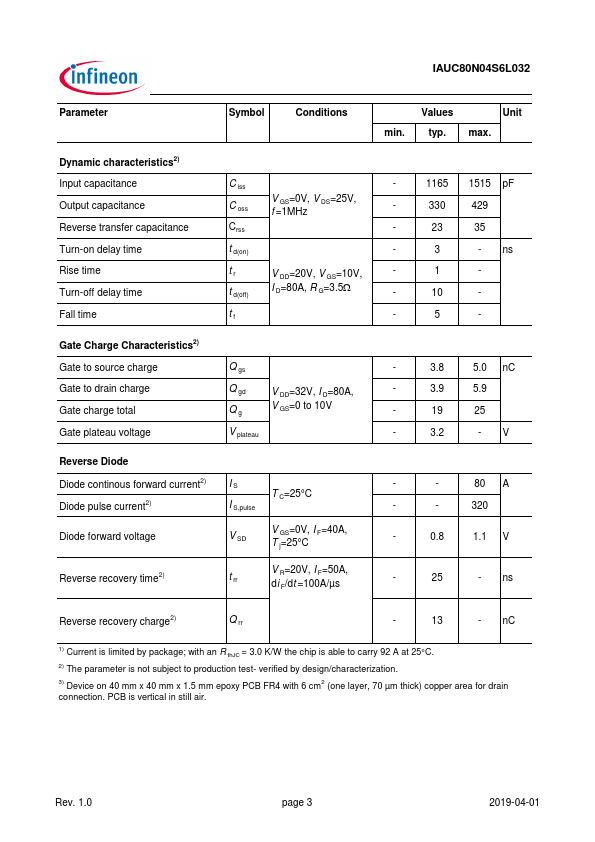

IAUC80N04S6L032 Datasheet Preview Page 2 IAUC80N04S6L032 Datasheet Preview Page 3

Datasheet Details

Part number:

IAUC80N04S6L032

Manufacturer:

Infineon ↗

File Size:

665.58 KB

Description:

Automotive power mosfet.
