ICE5BR3995CZ, ICE5BR4780BZ, Fixed-frequency 800V / 950V CoolSET

ICE5xRxxxxxZ Fixed-frequency 800 V / 950 V CoolSET™ in DIP-7 package .
The ICE5xRxxxxxZ is the fifth-generation of fixed-frequency integrated power IC (CoolSET™) optimized for offline switch-mode power supplies in cascode.

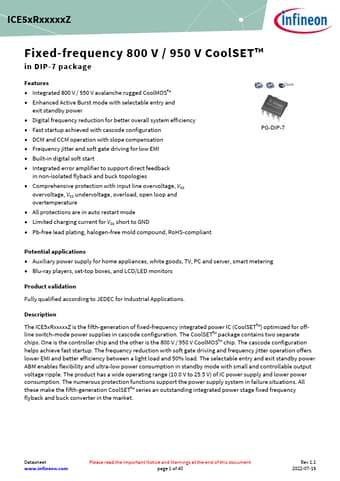

datasheet Preview Page 1 from Datasheet4u.com

ICE5BR4780BZ-Infineon.pdf

ICE5BR3995CZ Datasheet Preview — This datasheet PDF includes multiple part numbers: ICE5BR3995CZ, ICE5BR4780BZ. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ICE5BR3995CZ, ICE5BR4780BZ

Manufacturer:

Infineon ↗

File Size:

2.30 MB

Description:

Fixed-frequency 800V / 950V CoolSET

Note:

This datasheet PDF includes multiple part numbers: ICE5BR3995CZ, ICE5BR4780BZ.
Please refer to the document for exact specifications by model.

Features

* Integrated 800 V / 950 V avalanche rugged CoolMOS™
* Enhanced Active Burst mode with selectable entry and exit standby power
* Digital frequency reduction for better overall system efficiency
* Fast startup achieved with cascode configuration
* DCM and CCM operation with slope

Applications

* Auxiliary power supply for home appliances, white goods, TV, PC and server, smart metering
