IDWD20G120C5 - 1200V Schottky Diode

Infineon

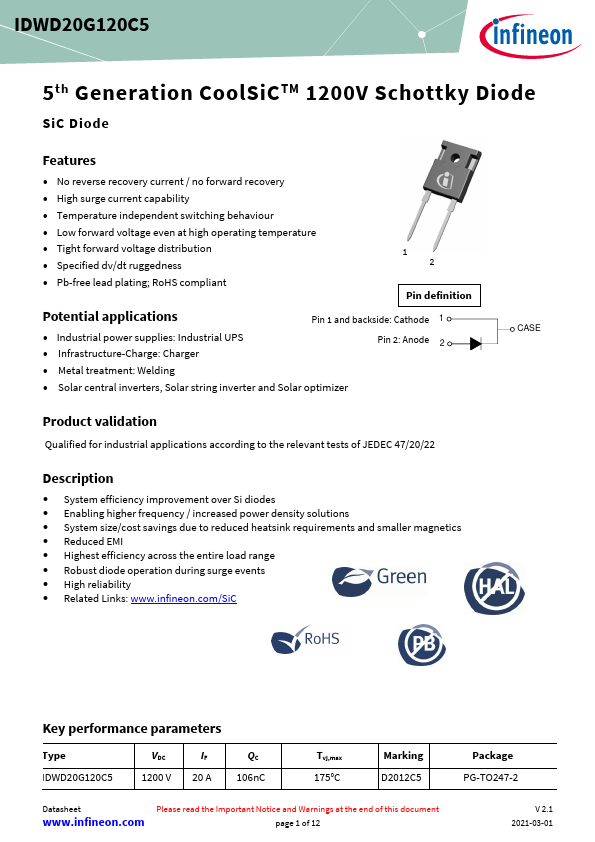

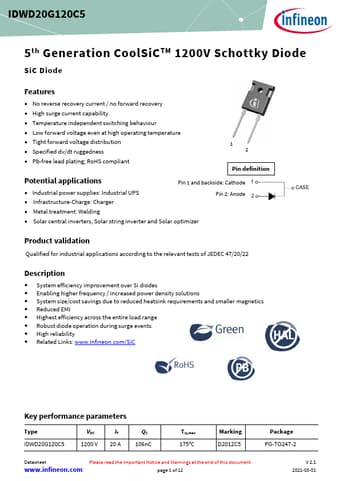

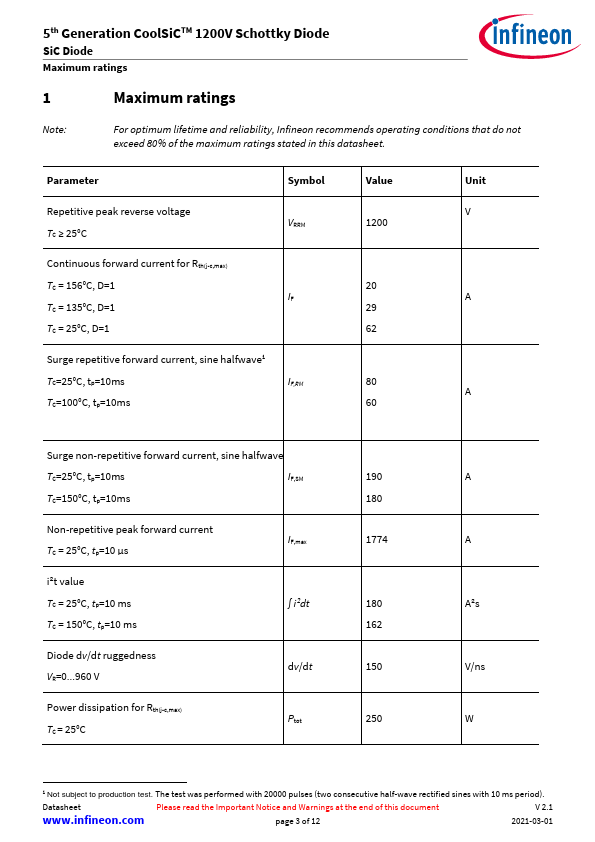

IDWD20G120C5 Datasheet Preview — Preview of IDWD20G120C5 PDF

Datasheet Details

Part number	IDWD20G120C5
Manufacturer	Infineon ↗
File Size	1.05 MB
Description	1200V Schottky Diode
Datasheet	IDWD20G120C5-Infineon.pdf

IDWD20G120C5 Product details

Description

System efficiency improvement over Si diodes Enabling higher frequency / increased power density solutions System size/cost savings due to reduced heatsink requirements and smaller magnetics Reduced EMI Highest efficiency across the entire load range Robust diode operation during surge events High reliability Related Links: www.infineon.com/SiC CASE Key performance parameters Type IDWD20G120C5 VDC IF 1200 V 20 A QC 106nC Tvj,max 175°C Mark

Features

No reverse recovery current / no forward recovery.
High surge current capability.
Temperature independent switching behaviour.
Low forward voltage even at high operating temperature.
Tight forward voltage distribution.
Specified dv/dt ruggedness.
Pb-free lead plating; RoHS compliant 1 2 Pin definition Potential.
