IGC70T120T6RL Datasheet - Infineon

IGC70T120T6RL, IGBT

IGC70T120T6RL IGBT4 Low Power Chip .
AQL 0,65 for visual inspection according to failure catalogue Electrostatic Discharge Sensitive Device according to MIL-STD 883 Test-Normen Villach/Pr.

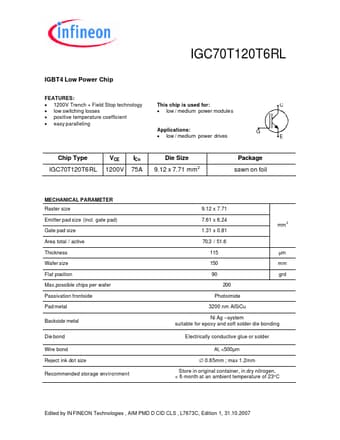

datasheet Preview Page 1 from Datasheet4u.com

IGC70T120T6RL-Infineon.pdf

IGC70T120T6RL Datasheet Preview — Preview of IGC70T120T6RL PDF

Datasheet Details

Part number:

IGC70T120T6RL

Manufacturer:

Infineon ↗

File Size:

69.68 KB

Description:

IGBT

Features

* 1200V Trench + Field Stop technology
* low switching losses
* positive temperature coefficient
* easy paralleling This chip is used for:

Applications

* low / medium power drives C G E Chip Type VCE ICn IGC70T120T6RL 1200V 75A Die Size 9.12 x 7.71 mm2 Package sawn on foil MECHANICAL PARAMETER Raster size Emitter pad size (incl. gate pad) Gate pad size Area total / active Thickness Wafer size Flat position Max. possible chips per waf
