IGC76T65T8RM Datasheet - Infineon

IGC76T65T8RM - IGBT

* Recommended for power modules Type IGC76T65T8RM Die size 7.87 mm x 9.69 mm Delivery form Sawn on foil Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2023-04-28 IGC76T65T8RM IGBT3 Chip Medium Power Table

IGC76T65T8RM Features

* VCES = 650 V

* ICn = 150 A

* 650 V trench & field stop technology

* High short circuit capability, self limiting short circuit current

* Positive temperature coefficient

* Easy paralleling Potential applications

* Drives Product validation

IGC76T65T8RM-Infineon.pdf

Preview of IGC76T65T8RM PDF

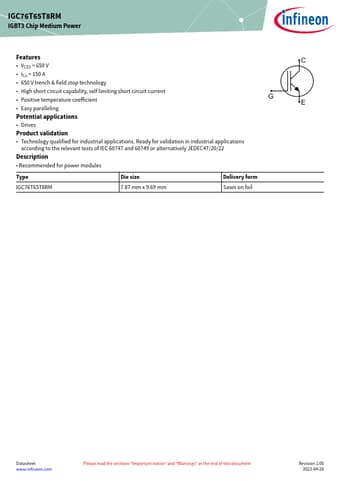

IGC76T65T8RM Datasheet Preview Page 2 IGC76T65T8RM Datasheet Preview Page 3

Datasheet Details

Part number:

IGC76T65T8RM

Manufacturer:

Infineon ↗

File Size:

102.94 KB

Description:

Igbt.
