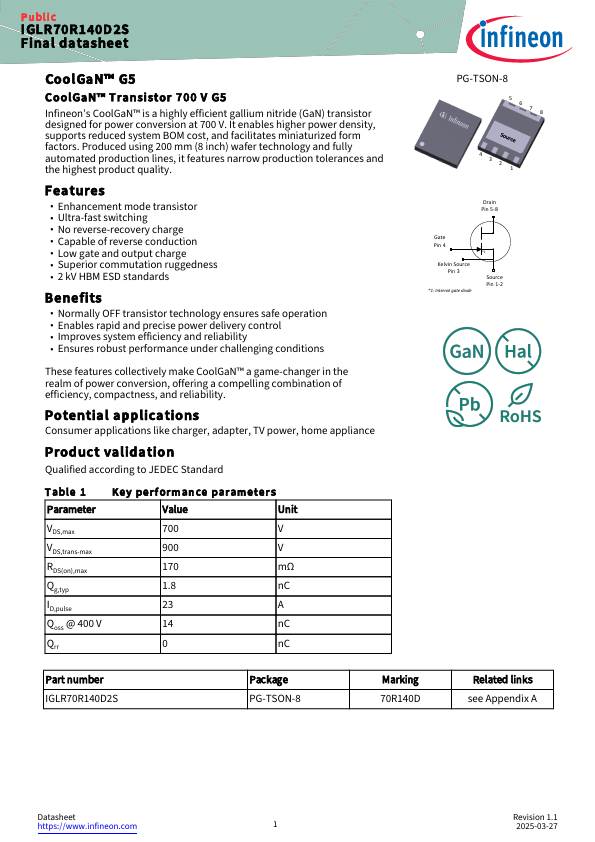

Public IGLR70R140D2S Final datasheet CoolGaN™ G5 CoolGaN™ Transistor 700 V G5 Infineon’s CoolGaN™ is a highly efficient gallium nitride (GaN) transis.
1 Maxi.

datasheet Preview Page 1 from Datasheet4u.com

IGLR70R140D2S-Infineon.pdf

IGLR70R140D2S Datasheet Preview — Preview of IGLR70R140D2S PDF

Datasheet Details

Part number:

IGLR70R140D2S

Manufacturer:

Infineon ↗

File Size:

1.30 MB

Description:

700V Transistor

Features

* narrow production tolerances and the highest product quality. Features
* Enhancement mode transistor
* Ultra‑fast switching
* No reverse‑recovery charge
* Capable of reverse conduction
* Low gate and output charge
* Superior commutation ruggedness

Applications

* Consumer applications like charger, adapter, TV power, home appliance Product validation Qualified according to JEDEC Standard Table 1 Key performance parameters Parameter Value Unit VDS,max 700 V VDS,trans‑max 900 V RDS(on),max 170 mΩ Qg,typ 1.8 nC ID,pulse 23 A Qoss @ 400 V 1
