IHW25N120R2 Datasheet, igbt equivalent, Infineon

PDF File Details

Part number: IHW25N120R2

Manufacturer: Infineon (https://www.infineon.com/)

File Size: 400.40KB

Download: 📄 Datasheet

Description: IGBT

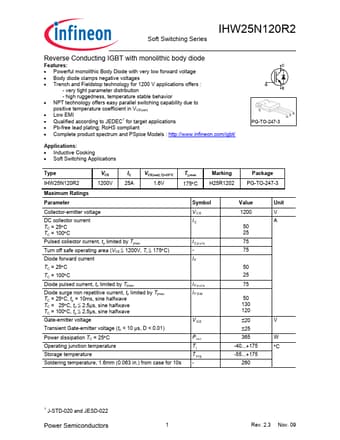

Datasheet Preview: IHW25N120R2 📥 Download PDF (400.40KB)

IHW25N120R2 Features and benefits


* Powerful monolithic Body Diode with very low forward voltage
* Body diode clamps negative voltages
* Trench and Fieldstop technology for 1200 V application.

IHW25N120R2 Application

offers : - very tight parameter distribution - high ruggedness, temperature stable behavior
* NPT technology offers .

Image gallery

Page 2 of IHW25N120R2 Page 3 of IHW25N120R2
