IKFW75N65EH5, High speed 5 IGBT

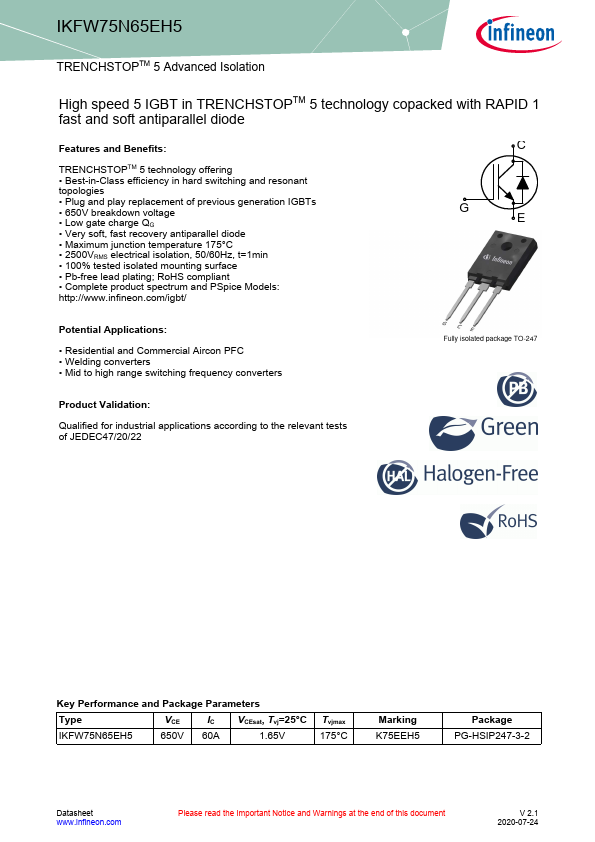

IKFW75N65EH5 TRENCHSTOPTM 5 Advanced Isolation High speed 5 IGBT in TRENCHSTOPTM 5 technology copacked with RAPID 1 fast and soft antiparallel diod.

datasheet Preview Page 1 from Datasheet4u.com

IKFW75N65EH5-Infineon.pdf

IKFW75N65EH5 Datasheet Preview — Preview of IKFW75N65EH5 PDF

Datasheet Details

Part number:

IKFW75N65EH5

Manufacturer:

Infineon ↗

File Size:

1.43 MB

Description:

High speed 5 IGBT

Features

* C TRENCHSTOPTM 5 technology offering
* Best-in-Class efficiency in hard switching and resonant topologies
* Plug and play replacement of previous generation IGBTs
* 650V breakdown voltage
* Low gate charge QG
* Very soft, fast recovery antiparallel diode

Applications

* Residential and Commercial Aircon PFC
* Welding converters
* Mid to high range switching frequency converters Fully isolated package TO-247 Product Validation: Qualified for industrial applications according to the relevant tests of JEDEC47/20/22 Key Performance and Pac
