IKFW75N65ES5, high speed soft switching IGBT

IKFW75N65ES5 TRENCHSTOPTM 5 Advanced Isolation TRENCHSTOPTM 5 high speed soft switching IGBT copacked with full current rated RAPID 1 fast and soft.

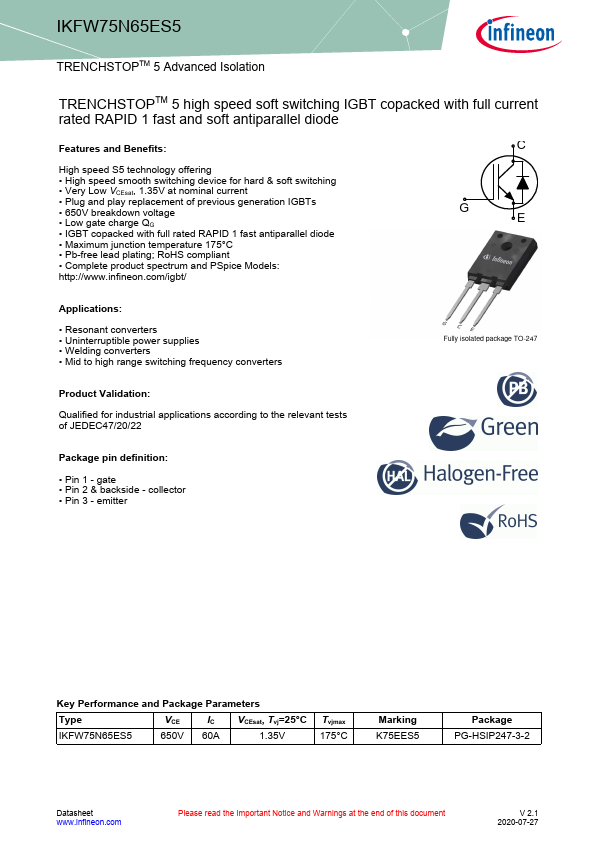

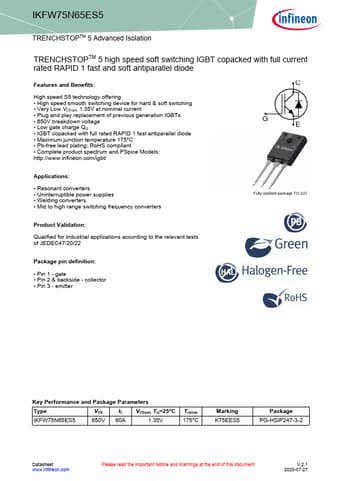

datasheet Preview Page 1 from Datasheet4u.com

IKFW75N65ES5-Infineon.pdf

IKFW75N65ES5 Datasheet Preview — Preview of IKFW75N65ES5 PDF

Datasheet Details

Part number:

IKFW75N65ES5

Manufacturer:

Infineon ↗

File Size:

1.49 MB

Description:

high speed soft switching IGBT

Features

* C High speed S5 technology offering
* High speed smooth switching device for hard & soft switching
* Very Low VCEsat, 1.35V at nominal current
* Plug and play replacement of previous generation IGBTs
* 650V breakdown voltage
* Low gate charge QG
* I

Applications

* Resonant converters
* Uninterruptible power supplies
* Welding converters
* Mid to high range switching frequency converters Fully isolated package TO-247 Product Validation: Qualified for industrial applications according to the relevant tests of JEDEC47/20/22
