IKFW90N60EH3 High speed switching series third generation IGBT

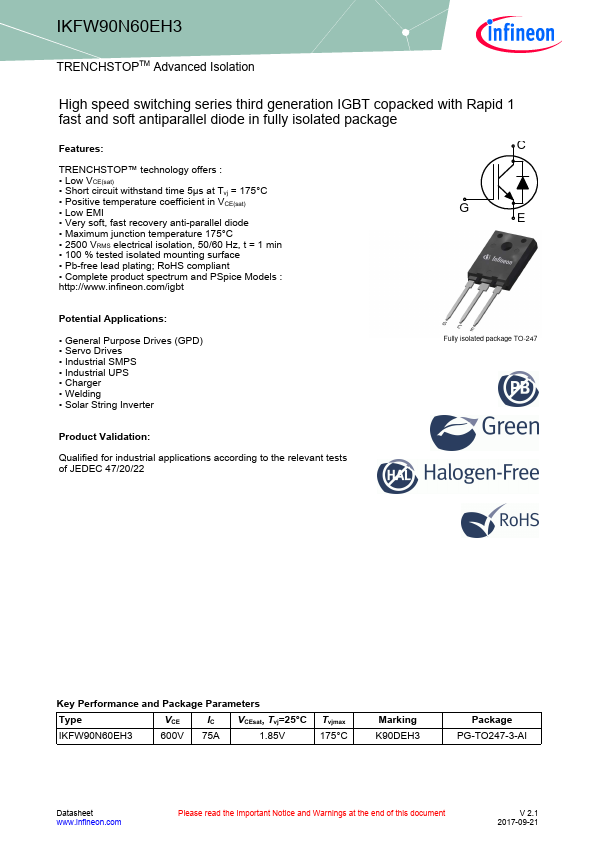

📥 Download Datasheet  Datasheet Preview Page 1

Description

IKFW90N60EH3 TRENCHSTOPTM Advanced Isolation High speed switching series third generation IGBT copacked with Rapid 1 fast and soft antiparallel dio.

📥 Download Datasheet

Preview of IKFW90N60EH3 PDF

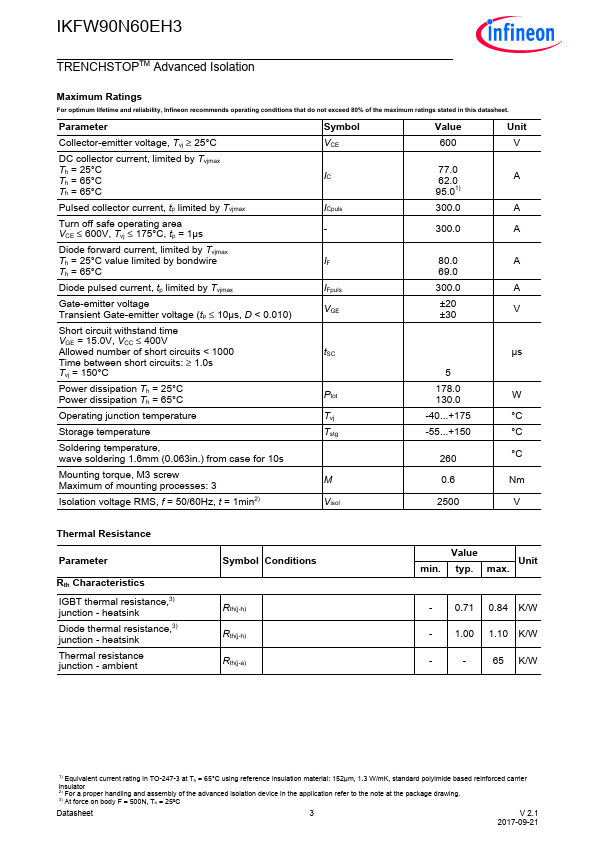

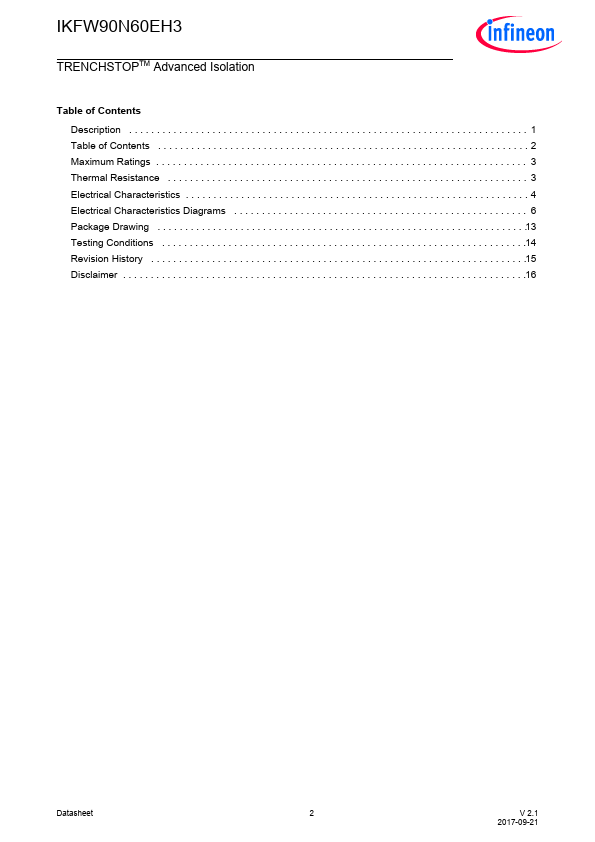

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IKFW90N60EH3
Manufacturer
Infineon ↗
File Size
1.96 MB
Datasheet
IKFW90N60EH3-Infineon.pdf
Description
High speed switching series third generation IGBT

Features

* C TRENCHSTOP™ technology offers :
* Low VCE(sat)
* Short circuit withstand time 5µs at Tvj = 175°C
* Positive temperature coefficient in VCE(sat)
* Low EMI
* Very soft, fast recovery anti-parallel diode
* Maximum junction temperature 175°C

Applications

* General Purpose Drives (GPD)
* Servo Drives
* Industrial SMPS
* Industrial UPS
* Charger
* Welding
* Solar String Inverter Fully isolated package TO-247 Product Validation: Qualified for industrial applications according to the relevant te
