IKFW90N65ES5 high speed soft switching IGBT

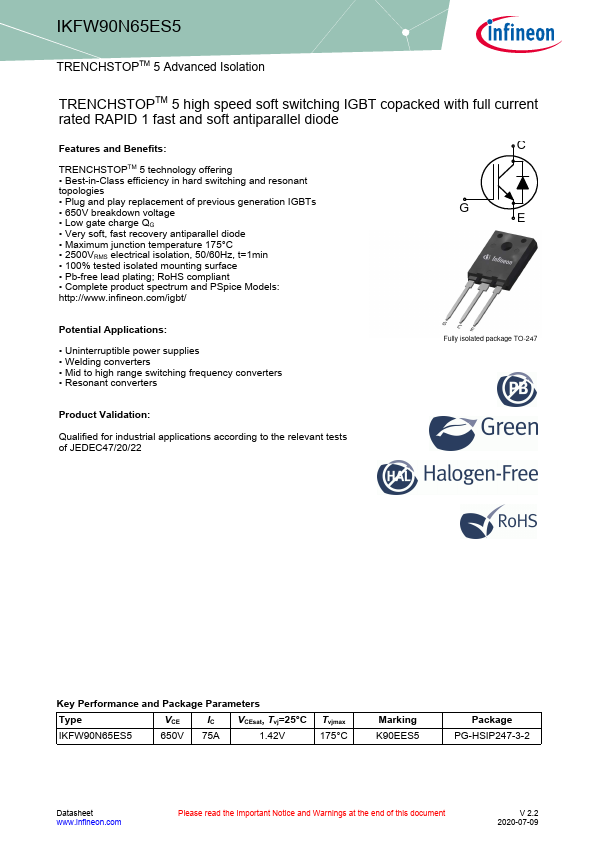

📥 Download Datasheet Datasheet Preview Page 1

Description

IKFW90N65ES5 TRENCHSTOPTM 5 Advanced Isolation TRENCHSTOPTM 5 high speed soft switching IGBT copacked with full current rated RAPID 1 fast and soft.

📥 Download Datasheet

Preview of IKFW90N65ES5 PDF

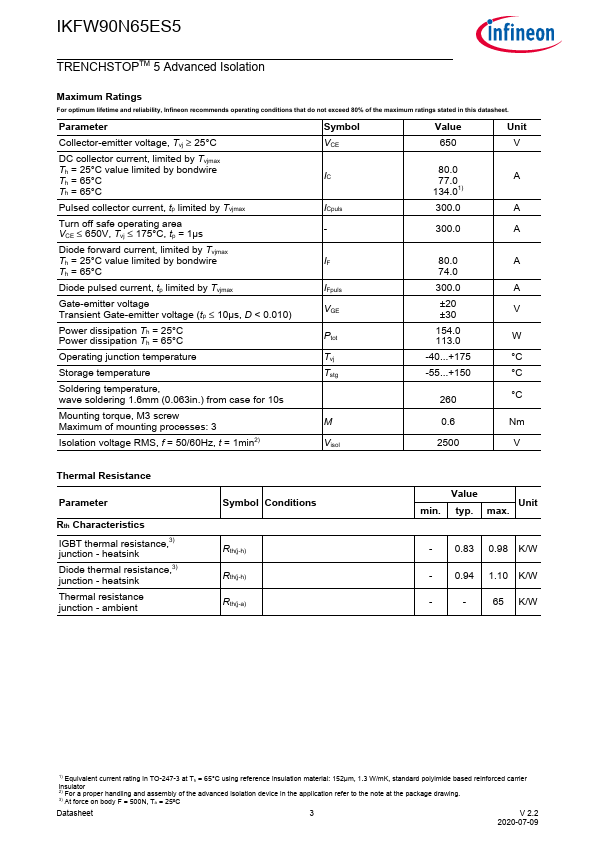

datasheet Preview Page 2 datasheet Preview Page 3

Features

* C TRENCHSTOPTM 5 technology offering
* Best-in-Class efficiency in hard switching and resonant topologies
* Plug and play replacement of previous generation IGBTs
* 650V breakdown voltage
* Low gate charge QG
* Very soft, fast recovery antiparallel diode

Applications

* Uninterruptible power supplies
* Welding converters
* Mid to high range switching frequency converters
* Resonant converters Fully isolated package TO-247 Product Validation: Qualified for industrial applications according to the relevant tests of JEDEC47/20/22
