IKQ75N120CH7 - High speed 1200V IGBT

Infineon

📥 Download Datasheet

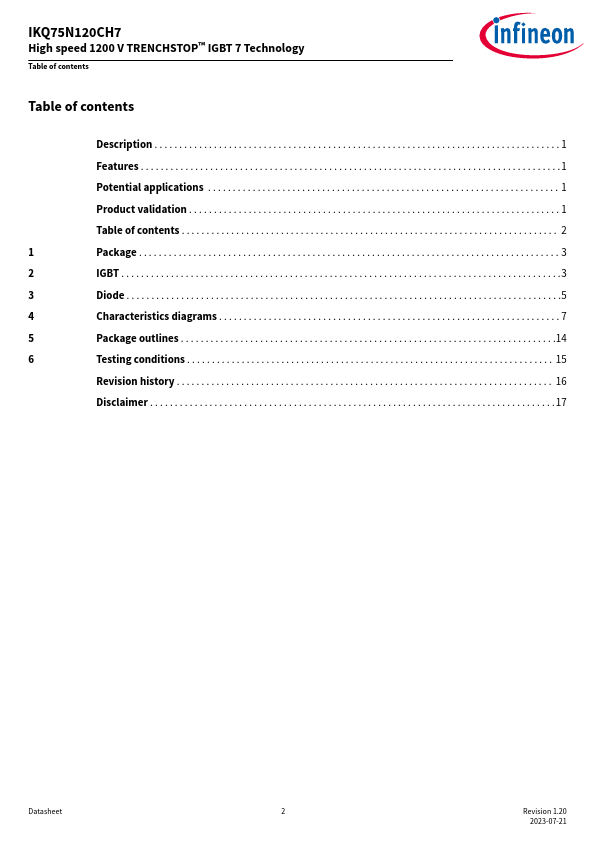

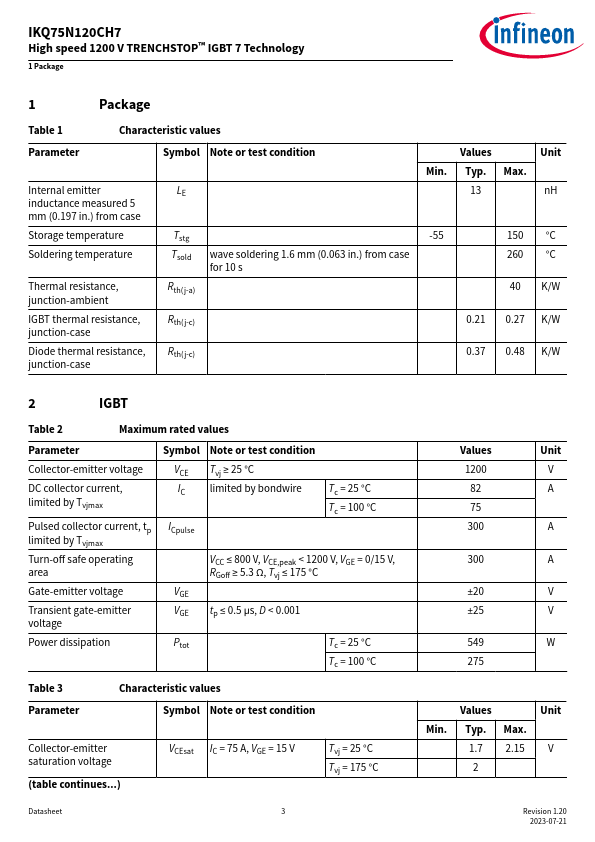

IKQ75N120CH7 Datasheet Preview — Preview of IKQ75N120CH7 PDF

Datasheet Details

Part number	IKQ75N120CH7
Manufacturer	Infineon
File Size	1.54 MB
Description	High speed 1200V IGBT
Datasheet	IKQ75N120CH7-Infineon.pdf

IKQ75N120CH7 Product details

Description

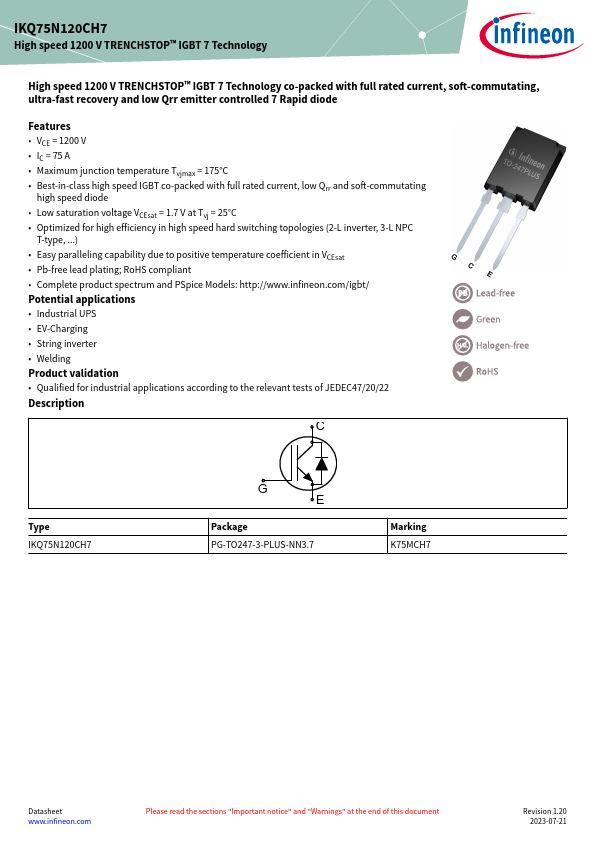

C Copyright © Infineon Te Type IKQ75N120CH7 G E Package PG-TO247-3-PLUS-NN3.7 Marking K75MCH7 Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.20 2023-07-21 IKQ75N120CH7 High speed 1200 V TRENCHSTOP™ IGBT 7 Technology Table of contents Table of contents Description .

Features

VCE = 1200 V.
IC = 75 A.
Maximum junction temperature Tvjmax = 175°C.
Best-in-class high speed IGBT co-packed with full rated current, low Qrr and soft-commutating high speed diode TO-247PLUS.
3Pin.
Low saturation voltage VCEsat = 1.7 V at Tvj = 25°C.
Optimized for high efficiency in high speed hard switching topologies (2-L inverter, 3-L NPC T-type, ).
Easy paralleling capability due to positive temperature coefficient.
