IKZA40N120CS7

IGBT

IKZA40N120CS7 Features

* VCE = 1200 V

* IC = 40 A

* IGBT co-packed with full current, soft and low Qrr diode

* Low saturation voltage VCEsat = 2.0 V at Tvj = 175°C

* Optimized for hard switching topologies (2-L inverter, 3-L NPC T-type, )

* Short circuit ruggedness 8 µs

IKZA40N120CS7 General Description

Type IKZA40N120CS7 Package PG-TO247-4-STD-NT3.7 Marking K40MCS7 Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.10 2023-01-23 IKZA40N120CS7 Short circuit rugged 1200 V TRENCHSTOP™ IGBT 7 technology Table of contents .

IKZA40N120CS7 Datasheet (1.67 MB)

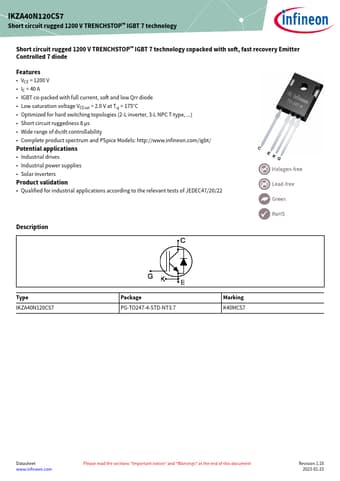

Preview of IKZA40N120CS7 PDF

Datasheet Details

Part number:

IKZA40N120CS7

Manufacturer:

Infineon ↗

File Size:

1.67 MB

Description:

Igbt.
IKZA40N120CS7 Short circuit rugged 1200 V TRENCHSTOP™ IGBT 7 technology Short circuit rugged 1200 V TRENCHSTOP™ IGBT 7 technology copacked with soft,.
