IKZA50N65RH5

IGBT

IKZA50N65RH5 Features

* TO-247-4

* 3Pin

* VCE = 650 V

* IC = 50 A

* Ultra-low switching losses due to the combination of TRENCHSTOPTM 5 and CoolSiCTM technology as well as the Kelvin emitter pin

* Benchmark efficiency in hard switching topologies

* Plug-and-play replaceme

IKZA50N65RH5 General Description

Package pin definition:

* Pin C & backside - collector

* Pin E - emitter

* Pin K - Kelvin emitter

* Pin G - gate Copyright © Infineon Techn Type IKZA50N65RH5 Package PG-TO247-4-3 Marking K50ERH5 Datasheet www.infineon.com Please read the sections "Important.

IKZA50N65RH5 Datasheet (1.32 MB)

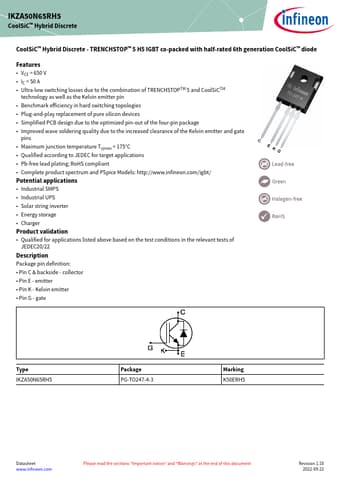

Preview of IKZA50N65RH5 PDF

Datasheet Details

Part number:

IKZA50N65RH5

Manufacturer:

Infineon ↗

File Size:

1.32 MB

Description:

Igbt.
IKZA50N65RH5 CoolSiC™ Hybrid Discrete CoolSiC™ Hybrid Discrete - TRENCHSTOP™ 5 H5 IGBT co-packed with half-rated 6th generation CoolSiC™ diode Featu.
