IKZA75N65RH5, Hybrid Discrete IGBT

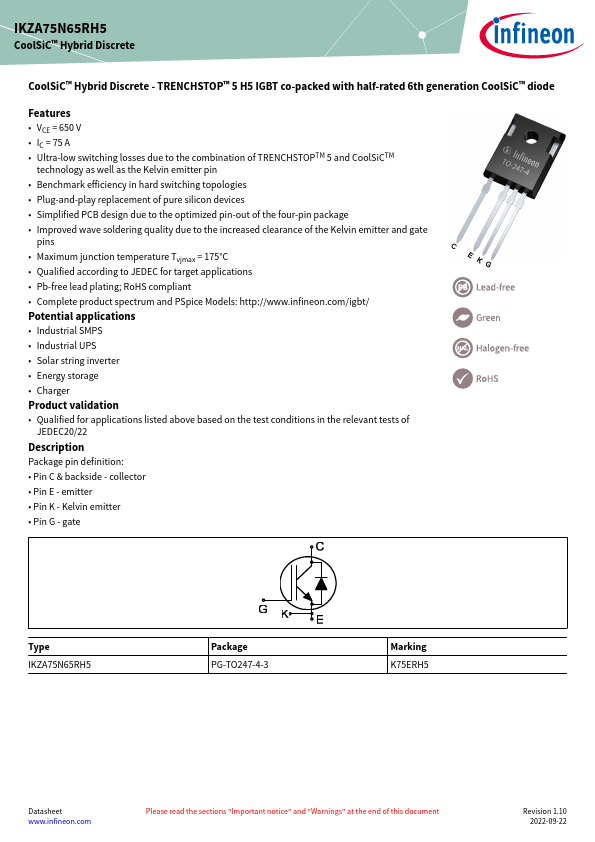

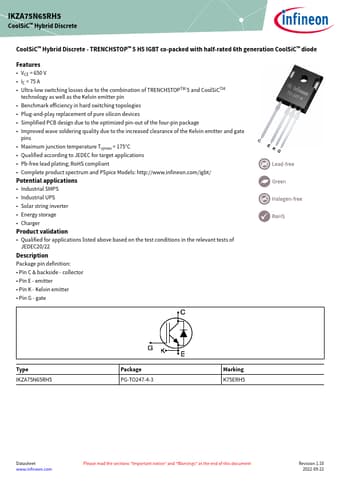

IKZA75N65RH5 CoolSiC™ Hybrid Discrete CoolSiC™ Hybrid Discrete - TRENCHSTOP™ 5 H5 IGBT co-packed with half-rated 6th generation CoolSiC™ diode Featu.
Package pin definition:. Pin C & backside - collector. Pin E - emitter. Pin K - Kelvin emitter. Pin G - gate.

datasheet Preview Page 1 from Datasheet4u.com

IKZA75N65RH5-Infineon.pdf

IKZA75N65RH5 Datasheet Preview — Preview of IKZA75N65RH5 PDF

Datasheet Details

Part number:

IKZA75N65RH5

Manufacturer:

Infineon ↗

File Size:

1.39 MB

Description:

Hybrid Discrete IGBT

Features

* TO-247-4
* 3Pin
* VCE = 650 V
* IC = 75 A
* Ultra-low switching losses due to the combination of TRENCHSTOPTM 5 and CoolSiCTM technology as well as the Kelvin emitter pin
* Benchmark efficiency in hard switching topologies
* Plug-and-play replaceme

Applications

* Pb-free lead plating; RoHS compliant 2021-10-27 restricted
* Complete product spectrum and PSpice Models: http://www. infineon. com/igbt/ Potential applications
* Industrial SMPS
* Industrial UPS
* Solar string inverter
* Energy storage
