IKZA50N65EH7 - IGBT

Infineon

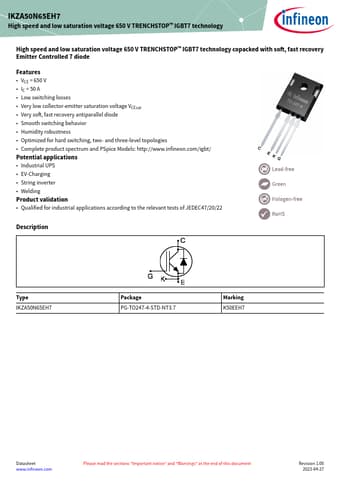

IKZA50N65EH7 Datasheet Preview — Preview of IKZA50N65EH7 PDF

Datasheet Details

Part number	IKZA50N65EH7
Manufacturer	Infineon ↗
File Size	1.98 MB
Description	IGBT
Datasheet	IKZA50N65EH7-Infineon.pdf

IKZA50N65EH7 Product details

Description

Type IKZA50N65EH7 Package PG-TO247-4-STD-NT3.7 Marking K50EEH7 Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2023-04-27 IKZA50N65EH7 High speed and low saturation voltage 650 V

Features

VCE = 650 V.
IC = 50 A.
Low switching losses.
Very low collector-emitter saturation voltage VCEsat.
Very soft, fast recovery antiparallel diode.
Smooth switching behavior.
Humidity robustness.
Optimized for hard switching, two- and three-level topologies.
Complete product spectrum and PSpice Models: http://www. infineon. com/igbt/ Potential.
