IMZ120R140M1H, 1200V SiC MOSFET

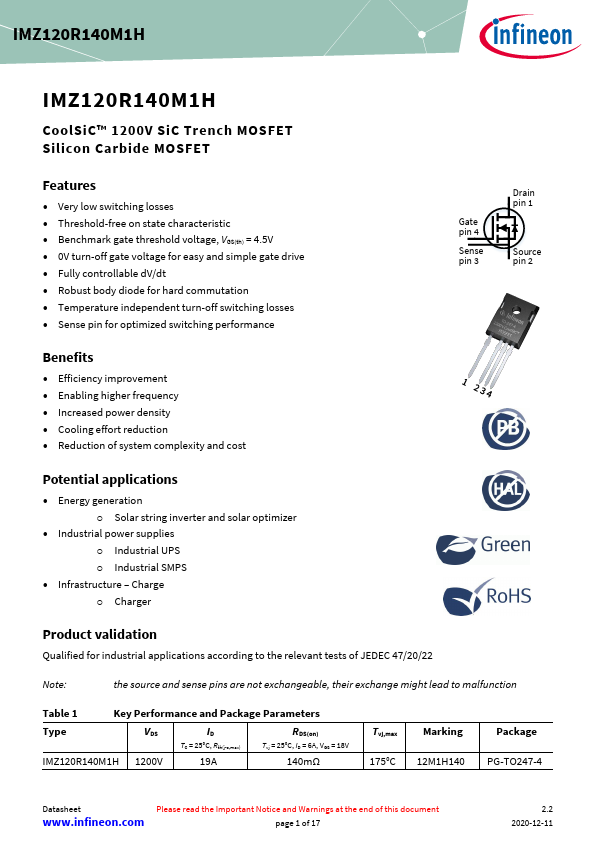

IMZ120R140M1H IMZ120R140M1H CoolSiC™ 1200V SiC Trench MOSFET Silicon Carbide MOSFET .

datasheet Preview Page 1 from Datasheet4u.com

IMZ120R140M1H-Infineon.pdf

IMZ120R140M1H Datasheet Preview — Preview of IMZ120R140M1H PDF

Datasheet Details

Part number:

IMZ120R140M1H

Manufacturer:

Infineon ↗

File Size:

1.24 MB

Description:

1200V SiC MOSFET

Features

* Very low switching losses
* Threshold-free on state characteristic
* Benchmark gate threshold voltage, VGS(th) = 4.5V
* 0V turn-off gate voltage for easy and simple gate drive
* Fully controllable dV/dt
* Robust body diode for hard commutation
* Temperature independent

Applications

* Energy generation o Solar string inverter and solar optimizer
* Industrial power supplies o Industrial UPS o Industrial SMPS
* Infrastructure
* Charge o Charger Product validation Qualified for industrial applications according to the relevant tests of JEDEC 47/20/22 Note: t
