IMZ120R350M1H 1200V SiC MOSFET

Infineon

Description

IMZ120R350M1H IMZ120R350M1H CoolSiC™ 1200V SiC Trench MOSFET Silicon Carbide MOSFET .

📥 Download Datasheet

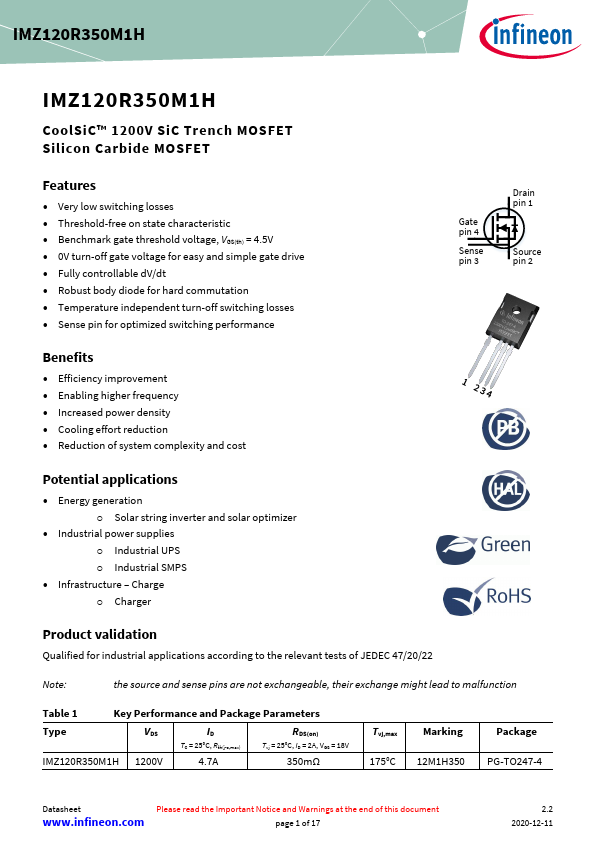

IMZ120R350M1H Datasheet Preview — Preview of IMZ120R350M1H PDF

Datasheet Specifications

Part number: IMZ120R350M1H
Manufacturer: Infineon ↗
File Size: 1.33 MB
Datasheet: IMZ120R350M1H-Infineon.pdf
Description: 1200V SiC MOSFET

Features

* Very low switching losses
* Threshold-free on state characteristic
* Benchmark gate threshold voltage, VGS(th) = 4.5V
* 0V turn-off gate voltage for easy and simple gate drive
* Fully controllable dV/dt
* Robust body diode for hard commutation
* Temperature independent

Applications

* Energy generation o Solar string inverter and solar optimizer
* Industrial power supplies o Industrial UPS o Industrial SMPS
* Infrastructure
* Charge o Charger Product validation Qualified for industrial applications according to the relevant tests of JEDEC 47/20/22 Note: t
