IPB017N06N3, IPB017N06N3G, Power Transistor

Type IPB017N06N3 G OptiMOS™3 Power-Transistor .

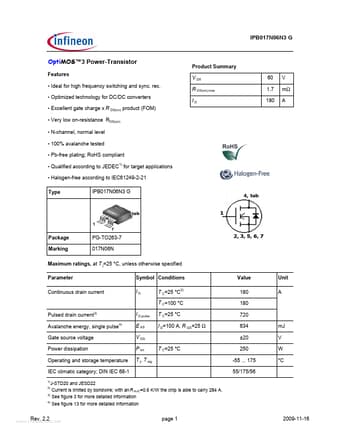

datasheet Preview Page 1 from Datasheet4u.com

IPB017N06N3G_InfineonTechnologies.pdf

IPB017N06N3 Datasheet Preview — This datasheet PDF includes multiple part numbers: IPB017N06N3, IPB017N06N3G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IPB017N06N3, IPB017N06N3G

Manufacturer:

Infineon ↗

File Size:

319.78 KB

Description:

Power Transistor

Note:

This datasheet PDF includes multiple part numbers: IPB017N06N3, IPB017N06N3G.
Please refer to the document for exact specifications by model.

Features

* Ideal for high frequency switching and sync. rec.
* Optimized technology for DC/DC converters
* Excellent gate charge x R DS(on) product (FOM)
* Very low on-resistance RDS(on)
* N-channel, normal level
* 100% avalanche tested
* Pb-free platin

Applications

* Halogen-free according to IEC61249-2-21 Type IPB017N06N3 G Product Summary V DS R DS(on),max ID 60 V 1.7 mΩ 180 A Package Marking PG-TO263-7 017N06N Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current ID T C=25 °C2) T
