IPB120N03S4L-03 - Power-Transistor

Infineon

📥 Download Datasheet

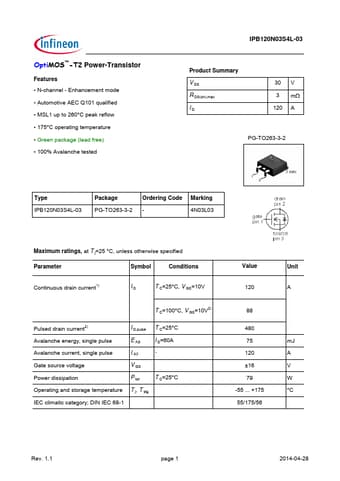

IPB120N03S4L-03 Datasheet Preview — Preview of IPB120N03S4L-03 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPB120N03S4L-03
Manufacturer	Infineon ↗
File Size	214.56 KB
Description	Power-Transistor
Datasheet	IPB120N03S4L-03-Infineon.pdf

IPB120N03S4L-03 Product details

Description

and charts stated herein.

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
100% Avalanche tested IPB120N03S4L-03 Product Summary V DS R DS(on),max ID 30 V 3 mW 120 A PG-TO263-3-2 Type IPB120N03S4L-03 Package PG-TO263-3-2 Ordering Code Marking - 4N03L03 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain curre.
