IPB100N04S2L-03 - Power-Transistor

Product Overview

Infineon Technologies

📥 Download Datasheet

IPB100N04S2L-03 Power-Transistor by Infineon Technologies - Datasheet Preview — Datasheet preview – IPB100N04S2L-03

Datasheet Details

Part number	IPB100N04S2L-03
Manufacturer	Infineon Technologies
File Size	188.35 KB
Description	Power-Transistor
Datasheet	IPB100N04S2L-03 Datasheet

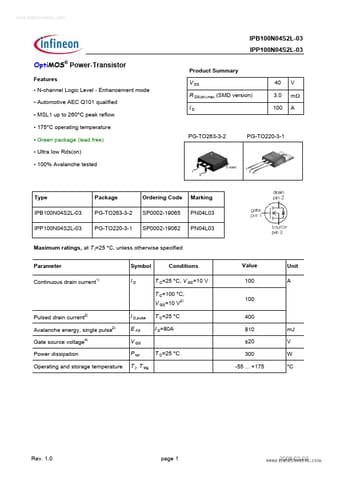

Additional preview pages of the IPB100N04S2L-03 datasheet.

Product details

Description

and charts stated herein.

Features

N-channel Logic Level - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
Ultra low Rds(on).
100% Avalanche tested Product Summary V DS R DS(on),max (SMD version) ID 40 3.0 100 V mΩ A PG-TO263-3-2 PG-TO220-3-1 Type IPB100N04S2L-03 IPP100N04S2L-03 Package PG-TO263-3-2 PG-TO220-3-1 Ordering Code SP0002-19065 SP0002-19062 Marking PN04L03 PN04L03.
