IPB100N06S2L-05 - Power-Transistor

Product Overview

Infineon Technologies

📥 Download Datasheet

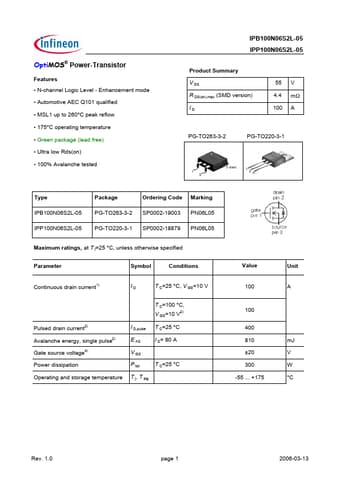

IPB100N06S2L-05 Power-Transistor by Infineon Technologies - Datasheet Preview — Datasheet preview – IPB100N06S2L-05

Datasheet Details

Part number	IPB100N06S2L-05
Manufacturer	Infineon Technologies
File Size	152.45 KB
Description	Power-Transistor
Datasheet	IPB100N06S2L-05 Datasheet
Additional preview pages of the IPB100N06S2L-05 datasheet.

Product details

Description

and charts stated herein.

Features

N-channel Logic Level - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
Ultra low Rds(on).
100% Avalanche tested IPB100N06S2L-05 IPP100N06S2L-05 Product Summary V DS R DS(on),max (SMD version) ID 55 V 4.4 mΩ 100 A PG-TO263-3-2 PG-TO220-3-1 Type IPB100N06S2L-05 IPP100N06S2L-05 Package Ordering Code Marking PG-TO263-3-2 SP0002-19003 PN06L05.
